How To Match Industrial Motor With VFD Frequency Inverters

Matching an industrial motor with a VFD frequency inverter is one of the most important decisions in modern motor control systems. A well-matched setup can improve speed control, reduce energy waste, lower mechanical stress, and extend equipment life. A poor match, however, can lead to nuisance trips, overheating, torque loss, premature bearing damage, or unreliable production performance.

This guide explains the key factors behind industrial motor VFD matching, including motor ratings, load type, voltage, current, torque requirements, enclosure considerations, and practical setup best practices.

What a VFD Does in an Industrial Motor System

A variable frequency drive, often called a VFD or frequency inverter, controls the speed and torque of an AC motor by adjusting the frequency and voltage supplied to the motor. Instead of running the motor at one fixed speed, the VFD allows the motor to accelerate, decelerate, and operate at different speeds based on process demand.

In industrial applications, VFDs are commonly used for:

• Pumps
• Fans and blowers
• Conveyors
• Compressors
• Mixers and agitators
• Machine tools
• Packaging equipment
• HVAC systems
• Material handling equipment

The goal is not simply to connect a drive to a motor. The goal is to select a drive and motor combination that performs reliably under the real operating conditions of the machine.

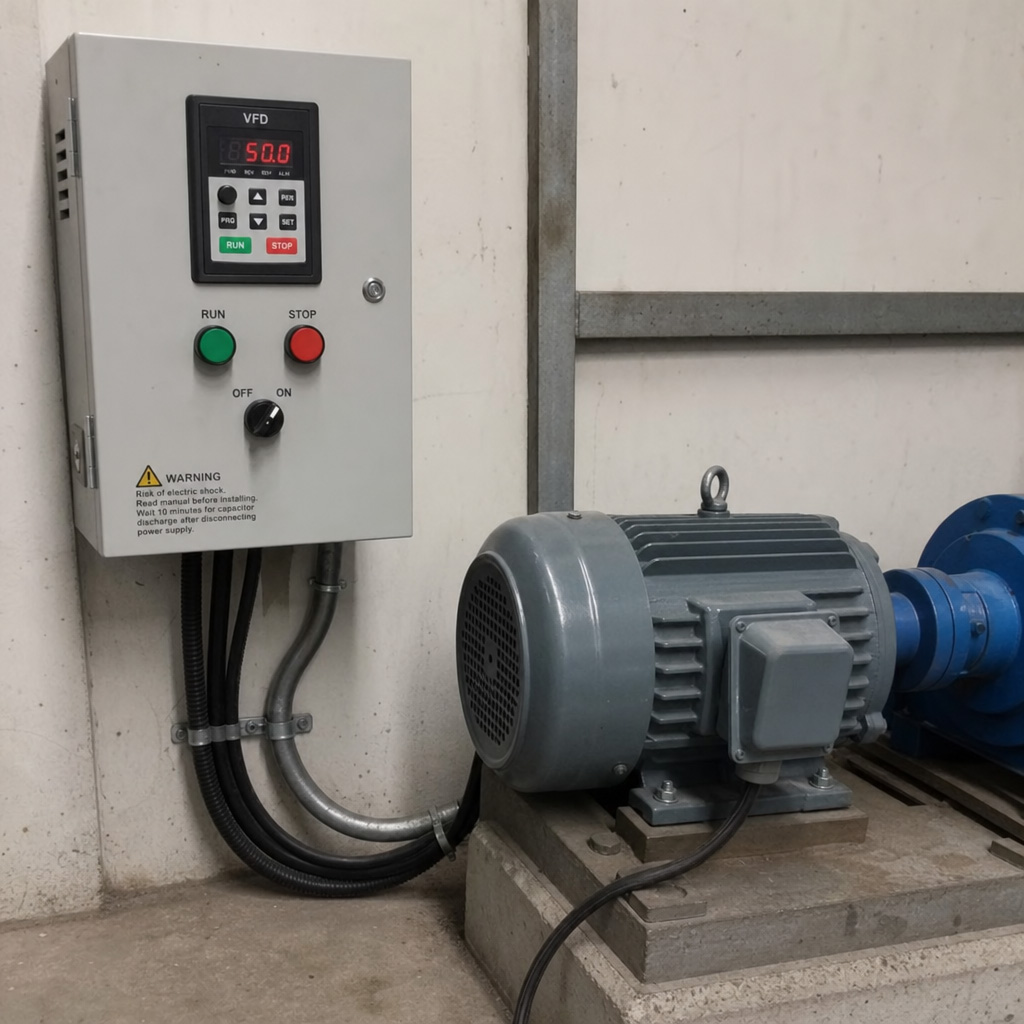

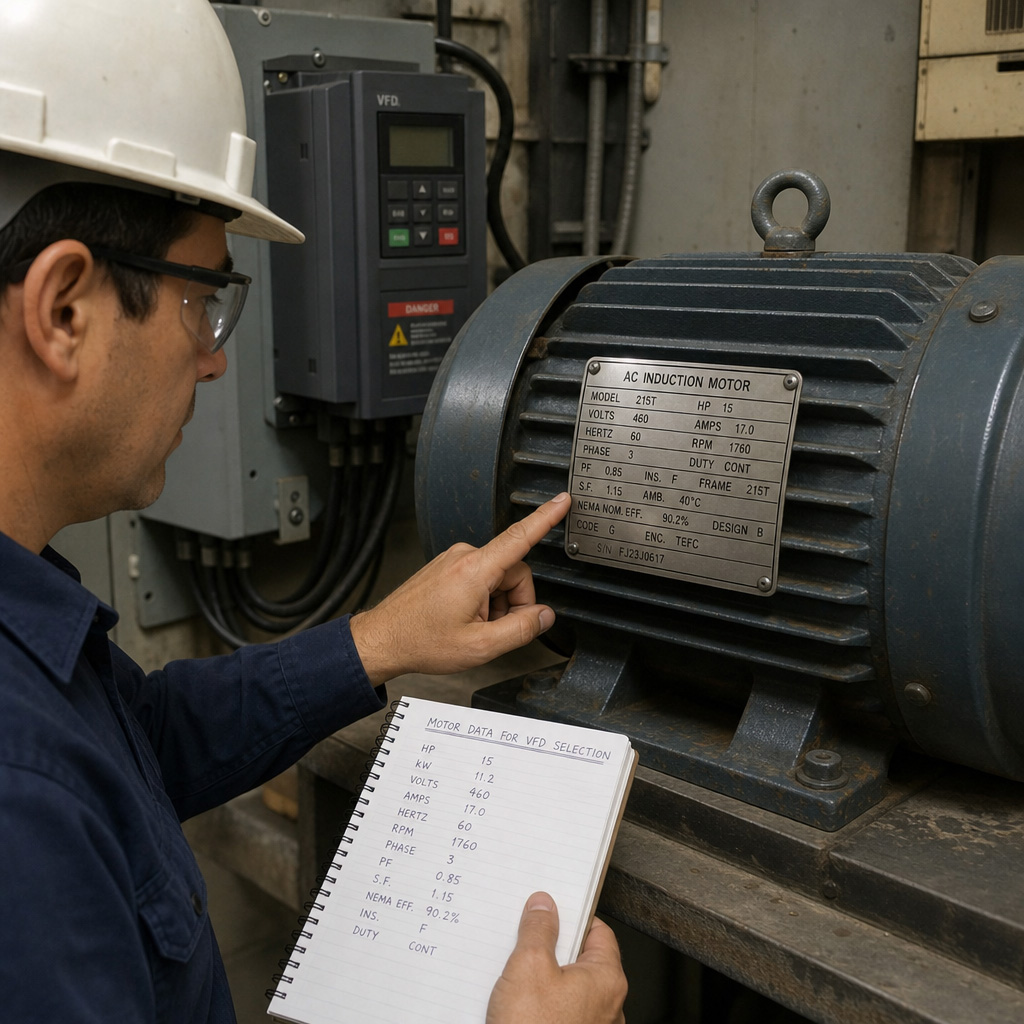

Start With the Motor Nameplate

The motor nameplate is the first place to look when matching a motor with a VFD. It provides the electrical and mechanical ratings that determine whether a specific drive is suitable.

Key nameplate details include:

• Rated voltage
• Full-load current or FLA
• Horsepower or kilowatt rating
• Rated frequency, commonly 50 Hz or 60 Hz
• Rated speed or RPM
• Service factor
• Phase count
• Insulation class
• Duty rating
• Enclosure type

For most industrial installations, the VFD should be selected based primarily on the motor’s full-load current, not only horsepower. Horsepower is useful, but current draw is what the drive must actually supply. If the motor current exceeds the inverter output rating, the drive may trip or fail to support the load properly.

Match Voltage and Phase Correctly

Voltage compatibility is essential. The VFD input voltage must match the available power supply, and the VFD output voltage must match the motor’s rated voltage.

Common industrial voltage classes include:

• 200 to 240 V
• 380 to 415 V
• 440 to 480 V
• 575 to 600 V

You also need to confirm phase compatibility. Many VFDs accept three-phase input and provide three-phase output. Some smaller drives can accept single-phase input and output three-phase power, but they must be sized correctly because single-phase input often requires drive derating.

Never assume a VFD can convert any supply into any motor voltage. Some drives are designed for specific voltage classes, and using the wrong voltage can damage the motor, drive, or both.

Size the VFD by Current and Load Type

A common mistake in industrial motor VFD matching is selecting a drive only because its horsepower rating matches the motor. In reality, the drive must be sized for current, overload capacity, and load characteristics.

Industrial loads generally fall into two broad categories.

Variable Torque Loads

Variable torque loads become easier to drive at lower speeds. Examples include centrifugal pumps and fans. These applications are often excellent candidates for VFDs because reducing speed can significantly reduce energy consumption.

For variable torque loads, a standard-duty VFD may be sufficient if the motor current and application requirements are within the drive rating.

Constant Torque Loads

Constant torque loads require consistent torque across a wide speed range. Examples include conveyors, positive displacement pumps, mixers, crushers, and extruders.

These applications may require a heavy-duty VFD with higher overload capacity. If the drive is undersized, it may trip during acceleration, jam conditions, or high-load operation.

When in doubt, size based on the most demanding operating condition rather than the average condition.

Understand Torque Requirements

Torque is central to proper motor and VFD matching. A motor may have enough horsepower at rated speed, but the system may still struggle if it cannot produce enough torque during startup or low-speed operation.

Consider these questions:

• Does the machine start under load?
• Is high starting torque required?
• Will the motor run at very low speeds for long periods?
• Are there frequent starts and stops?
• Does the load experience sudden changes or shock loading?

Standard volts-per-hertz control may work well for basic pumps and fans. More demanding applications may require sensorless vector control or closed-loop vector control for improved low-speed torque and speed regulation.

Check Motor Insulation and Inverter Duty Rating

Not every motor is ideal for VFD use. VFDs produce fast-switching voltage pulses that can place additional stress on motor insulation, especially when cable runs are long.

For new installations, an inverter-duty motor is often the preferred choice. These motors are designed to better tolerate the electrical effects of VFD operation. For existing motors, evaluate insulation class, motor age, cable length, and operating environment before adding a drive.

Potential VFD-related motor issues include:

• Insulation stress
• Additional motor heating
• Bearing currents
• Electrical noise
• Reduced cooling at low speeds

If the motor is older or not rated for inverter use, protective measures such as output reactors, filters, proper grounding, or bearing protection may be needed.

Consider Cooling at Low Speeds

Most standard industrial motors use a shaft-mounted fan for cooling. When the motor slows down, the fan also slows down, reducing cooling airflow. This can become a problem if the motor runs at low speed while delivering high torque.

Applications that operate at low speed for extended periods may require:

• An inverter-duty motor
• A separately powered cooling fan
• Reduced load at low speed
• Temperature monitoring
• Conservative current limits

This is especially important for constant torque applications. A motor that runs cool at full speed may overheat at reduced speed if airflow is insufficient.

Match the VFD to the Operating Environment

The environment can influence both motor and drive selection. VFDs are electronic devices and must be protected from heat, dust, moisture, vibration, and corrosive contaminants.

Important environmental factors include:

• Ambient temperature
• Panel ventilation
• Dust and debris exposure
• Moisture or washdown requirements
• Altitude
• Chemical exposure
• Available cabinet space
• Indoor or outdoor installation

Choose the correct enclosure rating for the installation. A clean electrical room may allow a standard panel-mounted drive, while a harsh industrial area may require a more protective enclosure or dedicated control cabinet.

Review Cable Length and Electrical Noise

Long cable runs between the VFD and motor can increase reflected wave voltage, electrical noise, and insulation stress. The longer the cable, the more important it becomes to review drive manufacturer recommendations.

Good installation practices include:

• Using properly rated VFD cable where appropriate
• Keeping motor leads as short as practical
• Separating power cables from control wiring
• Using correct grounding methods
• Considering output reactors or filters for long cable runs
• Following the VFD manufacturer’s wiring instructions

Electrical noise can affect sensors, PLCs, communication networks, and other control devices. Proper installation is a major part of reliable motor control systems.

Choose the Right Control Mode

Most VFDs offer multiple control modes. The right mode depends on the application.

Common options include:

• Volts-per-hertz control for simple speed control
• Sensorless vector control for improved torque response
• Closed-loop vector control for precise speed regulation with encoder feedback
• PID control for maintaining pressure, flow, or temperature

For simple fan and pump applications, basic control may be enough. For conveyors, hoists, process machinery, or applications requiring tight speed control, a more advanced mode may be required.

Account for Acceleration and Deceleration

Acceleration and deceleration settings affect both performance and reliability. If acceleration is too fast, the VFD may trip on overcurrent. If deceleration is too fast, the drive may trip on overvoltage because the motor acts like a generator during slowing.

Applications with high inertia may require:

• Longer ramp times
• Dynamic braking resistors
• Regenerative drive solutions
• DC bus management
• Mechanical braking coordination

Do not simply use default settings for every machine. Proper ramp setup helps reduce belt wear, coupling stress, fluid hammer, and mechanical shock.

Confirm Overload and Protection Settings

A VFD protects the motor and drive when programmed correctly. During commissioning, verify that key parameters match the motor nameplate and application requirements.

Important setup values include:

• Motor rated voltage
• Motor full-load current
• Motor frequency
• Motor rated speed
• Acceleration time
• Deceleration time
• Minimum and maximum frequency
• Current limit
• Overload protection
• Control mode

Incorrect parameter settings can make even a correctly sized VFD perform poorly. Always document the final settings for maintenance and troubleshooting.

Avoid Oversizing or Undersizing

Oversizing a VFD may seem safe, but it is not always the best solution. A significantly oversized drive may provide less accurate current sensing and motor protection. It can also increase cost and panel space requirements.

Undersizing is usually more serious. An undersized VFD may trip during startup, fail under peak load, overheat, or reduce process reliability.

The best approach is to size the drive according to motor current, duty cycle, overload requirements, load type, and manufacturer guidance.

Best Practices for Industrial Motor VFD Matching

For a reliable installation, follow these practical steps:

1. Review the motor nameplate data.

2. Confirm voltage, phase, frequency, and current ratings.

3. Identify the load as variable torque, constant torque, or high overload.

4. Check whether the motor is suitable for inverter operation.

5. Evaluate low-speed cooling requirements.

6. Consider cable length and electrical noise mitigation.

7. Select the correct VFD duty rating and enclosure type.

8. Program motor parameters accurately.

9. Test operation across the required speed range.

10. Monitor temperature, current, vibration, and trip history after startup.

Final Thoughts

Matching an industrial motor with a VFD frequency inverter requires more than comparing horsepower ratings. The right combination depends on current, voltage, torque, duty cycle, cooling, cable length, environment, and control requirements.

When properly selected and commissioned, a variable frequency drive can make industrial equipment more efficient, flexible, and reliable. By taking a systematic approach to industrial motor VFD matching, engineers, technicians, and facility managers can build stronger motor control systems that support safer operation and better long-term performance.
