What is Medium Voltage Switchgear ? Definition , Working Principle and Application

Medium voltage switchgear is a group of electrical devices used to control, protect, isolate, and monitor circuits that operate in the medium voltage range, commonly within utility, industrial, and large commercial power distribution systems. In simple terms, it helps electricity move safely from one part of an electrical infrastructure to another while allowing operators to disconnect equipment during faults, maintenance, or planned switching.

It is an essential form of electrical switchgear because medium voltage power carries enough energy to cause severe equipment damage, service interruption, and safety hazards if it is not properly managed. Good mv switchgear supports reliable voltage control, faster fault response, and safer operation across substations, plants, buildings, and renewable energy projects.

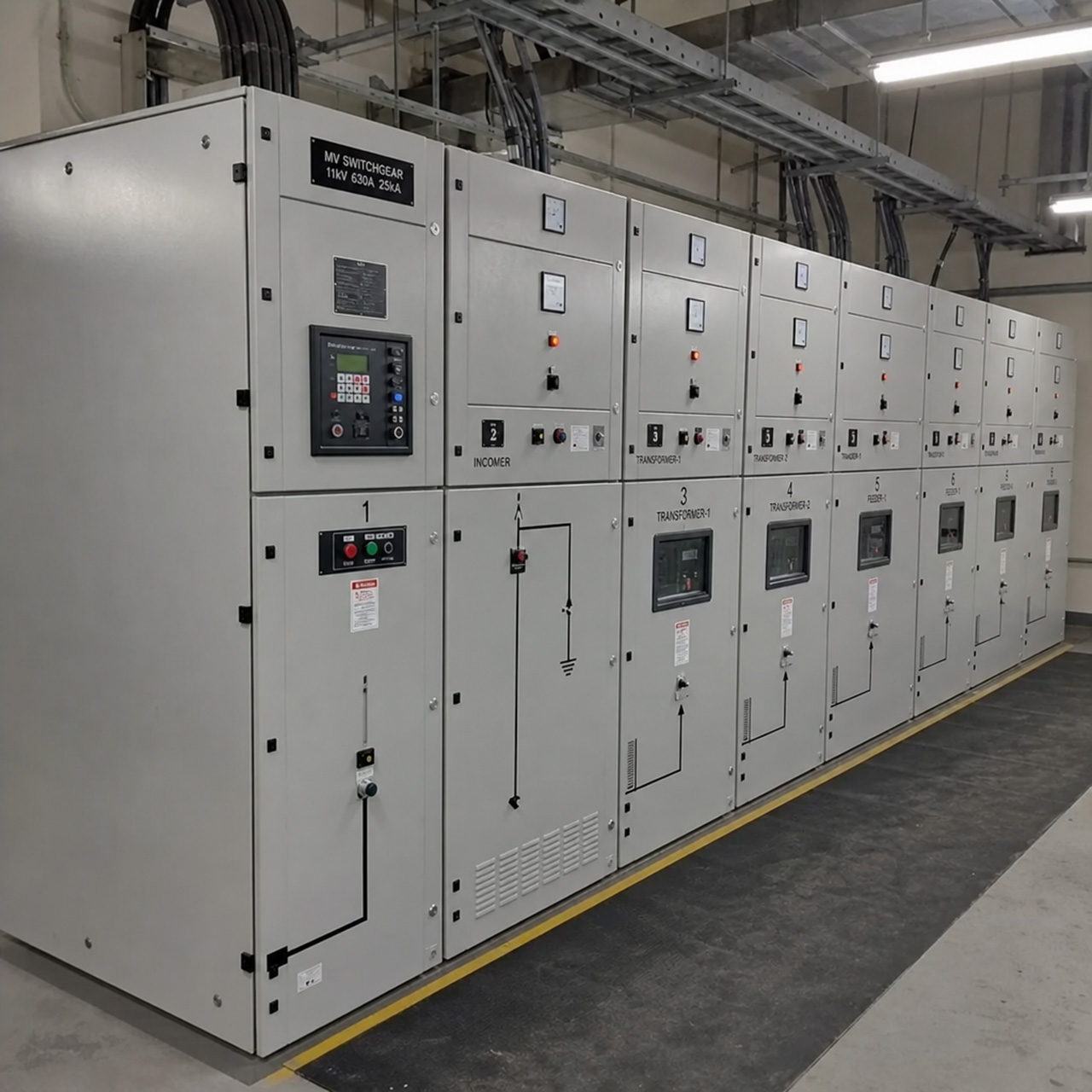

What is Medium Voltage Switchgear?

Medium voltage switchgear is electrical switchgear designed for circuits above low-voltage levels and below high-voltage transmission levels. It combines switching devices, protection devices, busbars, control systems, insulation, meters, and enclosures into one coordinated system so electricity can be distributed and interrupted safely.

The phrase “What is Medium Voltage Switchgear? Definition, Working Principle and Application” usually points to three connected ideas: what the equipment is, how it operates, and where it is used. Its main purpose is not simply to “turn power on and off.” It must also detect abnormal conditions, isolate only the affected section when possible, and protect people and assets from the consequences of short circuits, overloads, insulation failure, and operational mistakes.

Core characteristics of medium voltage switchgear

Although designs vary, most medium voltage switchgear solutions share several defining characteristics. These features allow the system to work as both a power distribution hub and a protective barrier between energized equipment and operators.

Key characteristics include:

· Switching capability: Circuit breakers, load break switches, disconnectors, or contactors open and close circuits under defined operating conditions.

· Fault interruption: Protective devices interrupt abnormal current before it spreads deeper into the electrical infrastructure.

· Isolation: Operators can separate equipment from live circuits for inspection, testing, or repair.

· Insulation: Air, gas, solid dielectric, or vacuum technologies help prevent unwanted current paths between energized parts.

· Control and monitoring: Relays, meters, sensors, and control wiring provide information about current, voltage, breaker position, alarms, and trip events.

· Mechanical protection: Metal enclosures, compartments, shutters, interlocks, and grounding arrangements reduce exposure to live parts.

· System coordination: Settings and device selection are arranged so the right breaker or switch acts at the right time.

These characteristics make medium voltage switchgear more than a cabinet of electrical components. It is a coordinated safety and control system that must match the network design, load profile, fault levels, installation environment, and operating procedures.

How does medium voltage switchgear work?

Medium voltage switchgear works by routing electrical power through busbars and switching devices, then using protective equipment to detect unsafe conditions and disconnect affected circuits. Under normal conditions, current flows from the incoming supply through the switchgear and out to transformers, motors, feeders, capacitor banks, or other loads.

When a fault occurs, sensors and protection relays measure changes in current, voltage, frequency, or other electrical values. If the condition crosses a preset threshold, the relay sends a trip signal to a circuit breaker or switching device. The device opens the circuit, extinguishes the arc created during interruption, and isolates the problem area from the rest of the power distribution network.

The working principle can be understood in five practical steps:

1. Power enters the switchgear through an incoming feeder, cable, transformer connection, or bus duct.

2. The busbar distributes power to outgoing feeders inside the enclosure.

3. Meters and sensors monitor conditions such as load current, voltage level, power quality, and equipment status.

4. Protection relays evaluate abnormal events and decide whether a trip is required.

5. The switching device opens or closes to control the circuit, clear the fault, or isolate equipment for maintenance.

This process may happen manually, automatically, or through a remote control system. In critical facilities, switchgear is often integrated with supervisory controls so operators can view status, alarms, and switching conditions without standing directly in front of the equipment.

Main components inside mv switchgear

The exact layout depends on the design, but medium voltage switchgear normally includes several major components. Each one supports a specific part of switching, protection, measurement, or operator safety.

Common components include:

· Circuit breakers: Interrupt load current and fault current. Vacuum circuit breakers are widely used in many modern medium voltage systems.

· Load break switches: Open and close circuits under normal load conditions, often used in distribution and ring main applications.

· Disconnectors and earthing switches: Provide visible or confirmed isolation and a controlled path to ground when equipment is being serviced.

· Busbars: Conductors that collect and distribute electrical power within the switchgear lineup.

· Instrument transformers: Current transformers and voltage transformers reduce electrical values to safer levels for relays and meters.

· Protection relays: Intelligent devices that detect faults, issue trip commands, record events, and support coordination.

· Control wiring and panels: Circuits for indications, commands, alarms, interlocks, heaters, and auxiliary supplies.

· Enclosure and compartments: Metal structures that separate functional areas and help contain internal electrical hazards.

· Cable terminations: Connection points where incoming and outgoing cables enter the switchgear.

A well-designed assembly brings these components together so they operate as one system. If any component is poorly selected, incorrectly installed, or badly maintained, the overall performance of the switchgear can be affected.

Switchgear types and insulation methods

Medium voltage switchgear is available in several configurations. The best choice depends on available space, service conditions, safety requirements, maintenance approach, and the role of the equipment in the broader power distribution system.

Common design categories include:

· Air-insulated switchgear: Uses air as the primary insulating medium. It is familiar, accessible, and often chosen where space is available and visual inspection is valued.

· Gas-insulated switchgear: Uses an insulating gas inside sealed compartments. It can reduce footprint and improve protection against harsh environments, depending on design.

· Solid-insulated switchgear: Uses solid dielectric materials around energized components to provide compact insulation and environmental resistance.

· Metal-clad switchgear: Separates major components into grounded metal compartments and often includes withdrawable circuit breakers.

· Metal-enclosed switchgear: Uses a metal enclosure but may have different internal compartment arrangements depending on the application.

· Ring main units: Compact switchgear commonly used in distribution networks where feeders are arranged in a loop or ring.

No single type is automatically best for every project. The right choice should consider load growth, fault current, maintenance access, operator skill level, environmental exposure, installation footprint, and integration with existing electrical infrastructure.

Where is medium voltage switchgear used?

Medium voltage switchgear is used wherever electrical power must be distributed at medium voltage levels before being transformed, controlled, or delivered to major loads. It appears in utility networks, industrial plants, campuses, transport systems, data centers, hospitals, mining sites, oil and gas facilities, wind farms, solar plants, and large commercial buildings.

Practical applications include:

· Utility substations: Controlling feeders that distribute electricity to neighborhoods, industrial zones, or commercial districts.

· Industrial facilities: Supplying large motors, furnaces, pumps, compressors, and process equipment.

· Commercial complexes: Feeding transformers that step voltage down for building services, HVAC, lighting, and tenant loads.

· Renewable energy systems: Connecting solar inverters, wind turbines, collection circuits, and step-up transformers.

· Critical power sites: Supporting selective isolation and redundancy in facilities that require high service continuity.

· Infrastructure projects: Powering rail systems, airports, water treatment plants, tunnels, and ports.

In each case, switchgear helps operators manage power safely and selectively. Instead of shutting down an entire site when a problem appears, a coordinated system can often isolate the affected feeder while keeping other parts energized.

Medium voltage switchgear and voltage control

Medium voltage switchgear does not usually “regulate” voltage by itself in the same way a transformer tap changer, voltage regulator, or power electronic device might. Its role in voltage control is more about enabling safe distribution, switching, monitoring, and coordination across the network.

For example, switchgear can connect or disconnect feeders, capacitor banks, transformers, or other equipment that influences voltage conditions. It also gives operators the measurements and switching points needed to respond to abnormal voltage, load imbalance, or equipment outages. In this sense, mv switchgear supports voltage control by making the power system observable, controllable, and sectionalized.

This distinction matters because it prevents unrealistic expectations. Switchgear is a platform for safe switching and protection; voltage-regulating devices may be connected through it, protected by it, or coordinated with it.

Common misconceptions about medium voltage switchgear

Medium voltage equipment is often misunderstood because it looks like a group of metal cabinets from the outside. Inside, however, it is a carefully engineered system with strict design and operating requirements.

Common misconceptions include:

· “It is just a large breaker panel.” In reality, it includes protection logic, insulation systems, interlocks, metering, grounding provisions, and coordinated switching devices.

· “All switchgear is the same.” Different applications require different ratings, interruption methods, enclosure styles, protection schemes, and maintenance practices.

· “Higher capacity is always better.” Oversizing without proper coordination can increase cost and complexity without improving system performance.

· “Once installed, it can be ignored.” Inspection, testing, cleaning, lubrication where applicable, relay verification, and environmental control are important for long-term reliability.

· “Switchgear alone solves every power quality issue.” It supports monitoring and control, but other equipment may be needed for harmonics, voltage regulation, or reactive power compensation.

Understanding these points helps project teams choose switchgear solutions based on real electrical needs rather than assumptions.

Selection factors for reliable switchgear solutions

Choosing medium voltage switchgear is a design decision, not a catalog shortcut. The equipment must suit both present operating needs and reasonable future expansion.

Important selection factors include:

· Rated voltage and insulation level: The switchgear must match the system voltage and withstand expected electrical stress.

· Continuous current rating: Busbars, breakers, and feeders must handle normal load without overheating.

· Short-circuit rating: The assembly must safely interrupt and withstand available fault current.

· Protection requirements: Relay functions should match feeders, transformers, motors, generators, and network configuration.

· Installation environment: Temperature, humidity, dust, altitude, corrosion, seismic conditions, and indoor or outdoor placement can affect design.

· Maintenance strategy: Withdrawable breakers, fixed units, sealed compartments, and monitoring features influence inspection and downtime.

· Safety features: Interlocks, grounding switches, arc-resistant construction, remote operation, and clear indicators can reduce operating risk.

· Expandability: Spare panels, bus extensions, and communication capability can make future upgrades easier.

Because medium voltage systems involve significant energy, qualified electrical professionals should evaluate specifications, installation, testing, and operating procedures. A safe system depends not only on the equipment itself but also on correct engineering and disciplined use.

The role of switchgear in modern electrical infrastructure

Medium voltage switchgear sits at a critical point between energy supply and energy use. It enables power distribution networks to be divided into manageable sections, protected against faults, and operated with greater visibility.

As facilities add automation, renewable generation, electric vehicle charging, backup power, and higher reliability expectations, switchgear becomes even more important. Modern electrical switchgear can support digital relays, communication interfaces, condition monitoring, and remote operation, helping teams make better decisions before problems become outages.

The simplest definition remains the most useful: medium voltage switchgear is the equipment that controls and protects medium voltage circuits. Its value comes from what that control makes possible: safer maintenance, selective fault isolation, reliable service, and a stronger foundation for the electrical infrastructure that businesses, communities, and essential services depend on.
