What Is a Circuit Breaker ? Definition Working Principle & Industrial Types

A circuit breaker is a protective switching device that automatically stops current flow when an electrical circuit becomes unsafe. It helps prevent overheating, equipment damage, arc faults, ground faults, and fire risks by opening the circuit during abnormal conditions. This guide explains the definition, working principle, common types of breakers, and how residential and industrial applications differ.

What is a circuit breaker?

A circuit breaker is an electrical safety device designed to interrupt current when a circuit experiences overload, short circuit, ground fault, arc fault, or another dangerous event. Unlike a fuse, which must be replaced after it melts, a circuit breaker can usually be reset after the fault is corrected. Electrical circuit breakers are used in homes, commercial buildings, factories, machinery panels, power distribution systems, and utility infrastructure.

In simple terms, the breaker watches the circuit. When current stays within the intended range, power flows normally. When current becomes excessive or unsafe, the breaker trips and separates its internal contacts, stopping the flow of electricity before conductors or connected equipment are damaged.

The working principle of electrical circuit breakers

Circuit breakers work by combining current sensing with a mechanical switching action. Under normal operation, current enters through one terminal, passes through the breaker’s conductive path, and exits through the other terminal. The internal contacts remain closed, allowing electricity to supply lights, outlets, motors, panels, or equipment.

When a fault occurs, the breaker’s trip mechanism releases the contacts. This creates an air gap or interruption path that stops current flow. Because electrical arcs can form as contacts separate, many breakers include arc-control features that cool, stretch, divide, or extinguish the arc safely.

Thermal protection for overloads

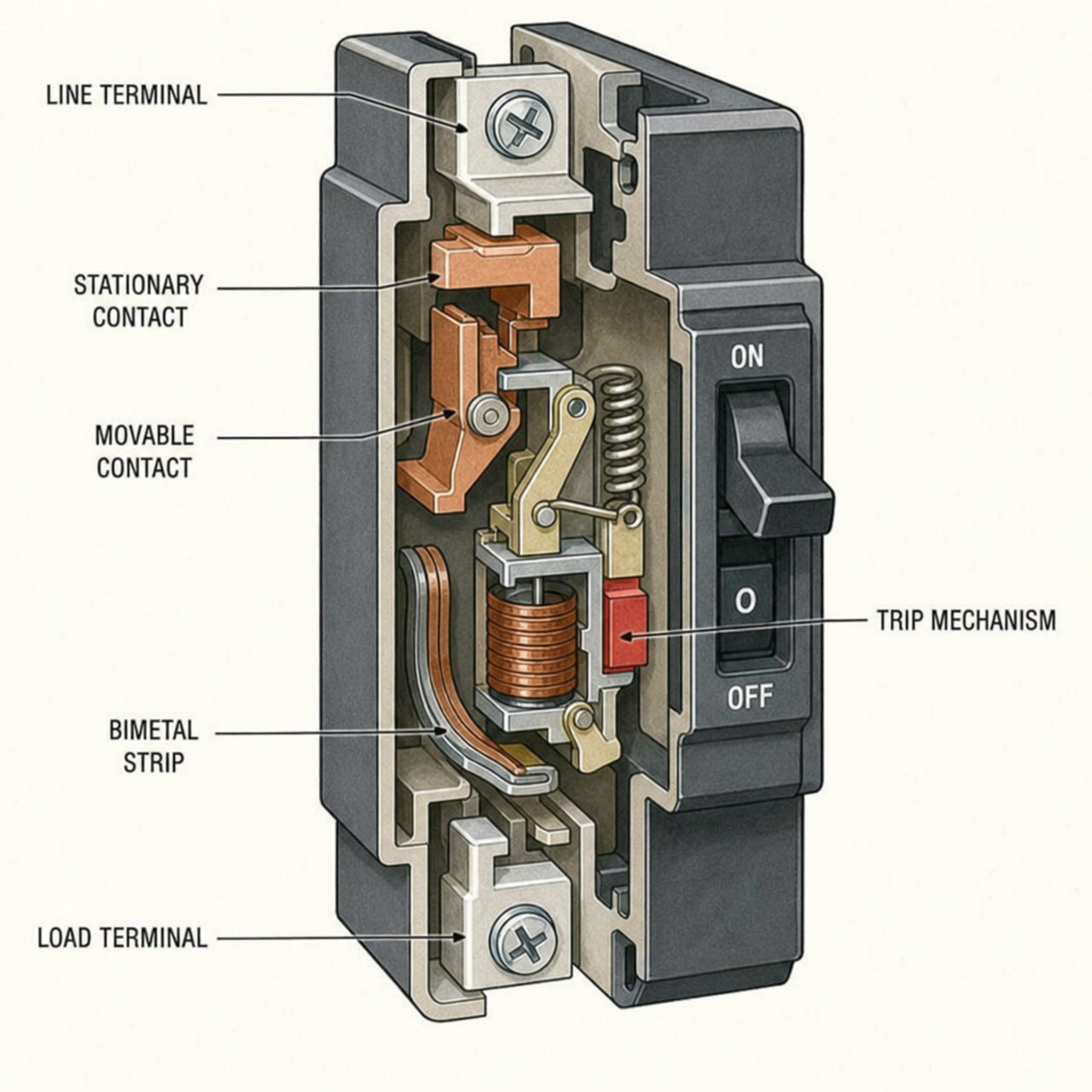

Thermal trip elements respond to sustained overcurrent. A common design uses a bimetal strip that bends as it heats. If a circuit carries more current than it should for too long, the strip moves enough to trigger the trip mechanism.

This is useful for overloads, such as too many devices on one branch circuit or a motor drawing more current than expected. Thermal tripping is not always instant because small overloads may need time to build heat. That delay helps avoid nuisance trips from brief startup surges.

Magnetic protection for short circuits

Magnetic trip elements respond very quickly to high fault current. When a short circuit occurs, current rises sharply, creating a strong magnetic field inside the breaker. That magnetic force activates the trip mechanism almost immediately.

This fast action is critical because short circuits can produce intense heat and mechanical stress in a fraction of a second. In many modern breakers, thermal and magnetic protection work together so the device can respond appropriately to both gradual overloads and sudden faults.

Electronic protection in advanced breakers

Larger commercial and industrial circuit breakers may use electronic trip units. These can measure current more precisely and may allow adjustable settings for long-time, short-time, instantaneous, and ground-fault protection. In coordinated distribution systems, these settings help ensure that the breaker nearest the fault trips first, limiting disruption to the rest of the facility.

Main types of breakers by application

The phrase “types of breakers” can refer to several categories: how the breaker trips, what voltage it serves, what fault it detects, or where it is installed. For practical selection, it helps to start with the application.

Residential circuit breaker types

Residential circuit breaker types are commonly used in home load centers to protect branch circuits and major appliances. The exact breaker must match the panel design, rating, and listing requirements, so selection is not just about amperage.

Common residential breakers include:

· Single-pole breakers: Protect 120-volt circuits such as lighting, general outlets, and small appliance circuits.

· Double-pole breakers: Protect 240-volt circuits for equipment such as electric ranges, dryers, water heaters, HVAC units, and some workshop tools.

· GFCI breakers: Help protect people from ground-fault shock hazards, especially in wet or damp locations.

· AFCI breakers: Detect certain arcing conditions that may indicate damaged wiring, loose connections, or cord problems.

· Dual-function breakers: Combine AFCI and GFCI protection in one device where both protections are required or preferred.

· Tandem or duplex breakers: Fit two circuits into one breaker space when the panel is designed and approved for them.

Commercial and industrial breaker types

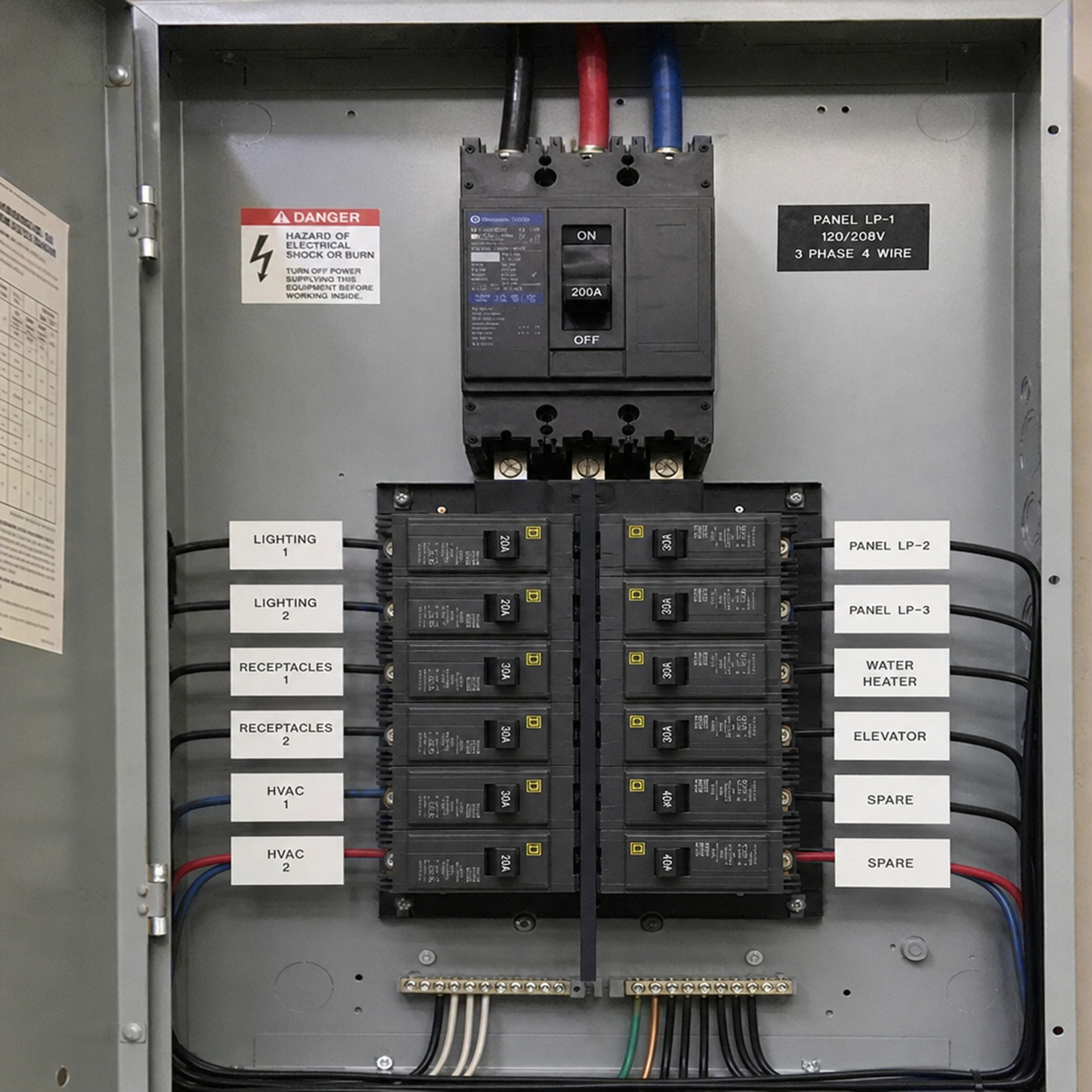

Industrial types are often built for higher currents, harsher conditions, more complex coordination, and greater interrupting capacity. They may protect motors, transformers, switchboards, control panels, feeders, production equipment, or entire sections of a facility.

Common industrial circuit breakers include:

· Molded case circuit breakers: Compact protective devices used in panels, machinery, and distribution equipment.

· Insulated case circuit breakers: Heavier-duty breakers often used where higher ratings and adjustable trip features are needed.

· Air circuit breakers: Used in low-voltage power distribution, especially for main and feeder protection.

· Vacuum circuit breakers: Common in medium-voltage systems because the vacuum interrupter extinguishes arcs efficiently.

· SF6 or gas circuit breakers: Used in some medium- and high-voltage applications where gas insulation and arc interruption are required.

· Motor circuit protectors: Designed for motor branch-circuit protection when paired with proper overload protection and control equipment.

Breaker categories by fault protection

Not every breaker protects against the same hazard. A standard thermal-magnetic breaker mainly protects conductors from overloads and short circuits. Other breaker designs add protection for people, property, or sensitive equipment.

A useful way to compare them is by the problem they solve:

· Overload protection: Trips when current exceeds the safe continuous capacity of the circuit.

· Short-circuit protection: Trips rapidly during a high-current fault between conductors.

· Ground-fault protection: Detects current leaking outside the intended path and opens the circuit.

· Arc-fault protection: Detects electrical arcing patterns that may lead to fire.

· Equipment protection: Uses specialized trip curves or electronic sensing to protect machinery, transformers, or distribution equipment.

This is why two breakers with the same amp rating are not always interchangeable. Their interrupting rating, voltage rating, trip curve, number of poles, protection functions, and panel compatibility all matter.

Brand families and panel compatibility

Searches for ge circuit breaker types, eaton circuit breaker types, and square d circuit breaker types are usually about compatibility. Each manufacturer has breaker families designed for specific panels, load centers, switchboards, or equipment lines. Even if two breakers appear similar, they may not be approved for the same enclosure or bus connection.

GE, Eaton, and Square D all have multiple breaker lines for residential, commercial, and industrial use. The important point is not the brand name alone but the exact breaker series, rating, and listing for the installed panel. A replacement breaker should be selected according to the panel label, manufacturer documentation, applicable electrical code, and the judgment of a qualified electrician.

Never assume that a breaker fits safely because it snaps into place. Physical fit does not prove electrical compatibility, mechanical security, heat performance, or code acceptance.

How do you choose the right circuit breaker?

The right circuit breaker is chosen by matching the circuit, equipment, panel, and protection requirement. A safe choice considers more than amperage because a breaker must be able to interrupt available fault current, connect properly to the panel, and provide the correct trip behavior for the load.

Use this checklist as a practical starting point:

1. Confirm the system voltage. Match the breaker to the circuit voltage and phase arrangement.

2. Identify the number of poles. Use single-pole, double-pole, three-pole, or other configurations as the system requires.

3. Match the amp rating to the conductors and load. The breaker must protect the wiring, not just power the device.

4. Check interrupting capacity. The breaker must be rated to safely interrupt the available fault current.

5. Select the protection function. Decide whether standard, GFCI, AFCI, ground-fault, electronic trip, or motor protection is needed.

6. Verify panel compatibility. Use only breaker types listed or approved for the specific equipment.

7. Consider the environment. Industrial settings may require ratings for temperature, enclosure type, vibration, dust, moisture, or corrosive conditions.

8. Plan coordination. In larger systems, upstream and downstream breakers should be arranged to limit outages during faults.

Installation, testing, and maintenance basics

Circuit breakers are safety devices, so installation quality matters. Loose terminations, damaged conductors, incorrect torque, wrong breaker type, or overloaded circuits can create hazards even when the breaker itself is functional. In homes, a licensed electrician should handle panel work, upgrades, and troubleshooting beyond simple resetting.

For industrial facilities, maintenance may include visual inspection, infrared scanning, mechanical operation checks, trip testing, cleaning, and verification of protective settings. The maintenance approach depends on the breaker design, equipment criticality, operating environment, and manufacturer instructions.

A breaker that trips repeatedly is not the problem to “work around.” It is a warning sign. The cause may be an overloaded circuit, failing appliance, wiring fault, moisture issue, motor problem, or incorrect breaker selection. Resetting it again and again without diagnosis can increase risk.

Key takeaways

Circuit breakers protect electrical systems by automatically opening circuits during unsafe current conditions. Residential breakers usually protect lighting, receptacles, appliances, and people, while industrial breakers may protect high-capacity distribution systems, motors, transformers, and production equipment. The major types of breakers differ by voltage class, trip method, fault protection, interrupting capacity, and installation environment.

When comparing electrical circuit breakers, focus on the circuit’s real requirements rather than appearance or brand alone. Whether reviewing residential circuit breaker types or comparing GE, Eaton, and Square D circuit breaker types, safe selection depends on the correct rating, function, compatibility, and professional installation.
