Circuit Breaker Aging Judgment & Replacement Standards for Factory Equipment

Circuit breakers protect factory equipment by interrupting abnormal current before it damages machines, wiring, panels, or people. Because breakers age through heat, vibration, dust, moisture, overload events, and repeated operation, factories need a clear way to judge condition and decide when maintenance is enough and when replacement is safer. This guide explains practical circuit breaker maintenance, aging judgment, and replacement standards for industrial environments without relying on guesswork.

What does breaker aging mean in factory equipment?

Breaker aging means the device may no longer trip, reset, insulate, or conduct current as reliably as it did when new. In factories, aging is not only about calendar years; it is also about operating stress. A breaker installed in a hot motor control cabinet, exposed to vibration, and used near its rated load every day can deteriorate faster than one installed in a clean, cool, lightly loaded panel.

The most important idea is that circuit breaker lifespan should be judged by condition and duty, not by age alone. A breaker can look acceptable from the outside while its contacts are worn, springs are weakened, insulation is contaminated, or terminals are heat-damaged. That is why electrical safety checks should combine visual inspection, operating history, thermal signs, and functional testing where appropriate.

Key factors that shorten circuit breaker lifespan

Factory breakers often work in harsher conditions than commercial building breakers. They may protect motors, welders, conveyors, compressors, heaters, packaging lines, and other loads that create frequent starts, inrush current, harmonics, or heat. These stresses do not always cause immediate failure, but they gradually reduce reliability.

Common aging factors include:

· Heat buildup: Loose terminals, undersized conductors, overloaded circuits, poor ventilation, and high ambient temperatures can accelerate insulation aging and contact damage.

· Frequent tripping: A breaker that trips repeatedly is warning that the circuit has a load problem, fault condition, or coordination issue. Resetting without investigation can hide a serious risk.

· Mechanical wear: Switching operations, vibration, and shock can weaken internal mechanisms or make operation inconsistent.

· Dust and contamination: Conductive dust, oil mist, metal particles, and chemical vapors can reduce insulation performance and increase tracking or corrosion.

· Moisture and corrosion: Damp environments can attack terminals, bus connections, springs, and enclosures.

· Incorrect application: A breaker with the wrong interrupting rating, trip curve, voltage rating, or enclosure suitability may age prematurely and fail dangerously.

These factors should be documented as part of routine circuit breaker maintenance, especially in production areas where downtime or safety incidents carry high consequences.

Aging judgment starts with inspection and operating history

Aging judgment is the process of deciding whether a breaker remains fit for service. It begins with simple observations but should not stop there. Maintenance teams should review where the breaker is installed, what equipment it protects, how often it trips, whether the load has changed, and whether similar breakers in the same panel show heat or contamination.

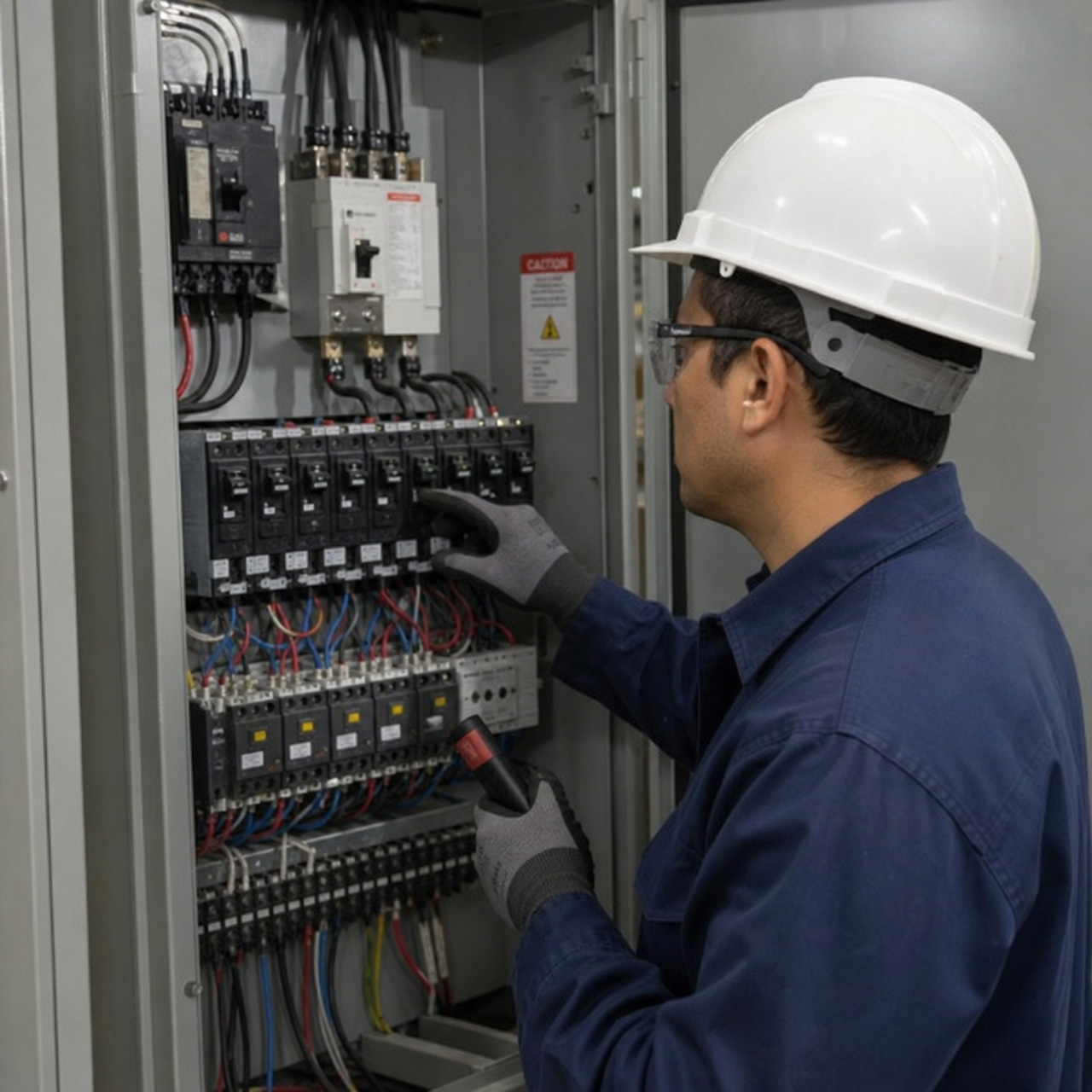

During visual inspection, look for discoloration, melting, cracks, burned odor, corrosion, dust accumulation, missing covers, loose mounting, damaged handles, and labels that no longer match the protected circuit. A breaker that feels unusually hot, makes noise, will not latch properly, or has a handle that feels loose should be treated as suspect.

A practical inspection checklist includes:

1. Confirm the breaker rating matches the circuit and equipment.

2. Check for heat marks on the breaker body, terminals, conductors, and panel interior.

3. Verify that screws, lugs, and bus connections are properly secured according to approved procedures.

4. Look for moisture, corrosion, dust, oil, or conductive debris.

5. Review trip history and determine whether trips were investigated.

6. Confirm covers, barriers, arc-flash labels, and circuit identification are present and readable.

7. Record findings so trends can be compared over time.

Electrical safety checks that support replacement decisions

Electrical safety checks help move the decision from opinion to evidence. The right checks depend on breaker type, facility rules, equipment criticality, and the skills of qualified personnel. For many molded case breakers, maintenance may focus on inspection, connection integrity, thermal scanning, cleaning around the enclosure, and replacement when defects appear. Larger low-voltage power breakers may require more detailed testing and servicing.

Useful checks may include infrared thermography under normal load, insulation resistance testing where suitable, contact resistance testing, mechanical operation checks, and trip-unit testing for breakers designed to be tested that way. These checks should be performed safely, with proper lockout/tagout, personal protective equipment, and qualified electrical workers.

Thermal imaging is especially useful because it can reveal abnormal heating while equipment is operating. However, a normal thermal scan does not prove that a breaker will trip correctly during a fault. It is one piece of evidence, not a complete aging judgment by itself.

When should a factory circuit breaker be replaced?

A factory circuit breaker should be replaced when there is visible damage, unreliable operation, abnormal heating, contamination that cannot be safely corrected, repeated unexplained tripping, failed testing, obsolete ratings, or a mismatch with the protected equipment. Replacement is also appropriate when the breaker’s condition cannot be confidently verified and the circuit is critical to safety or production.

Strong replacement triggers include:

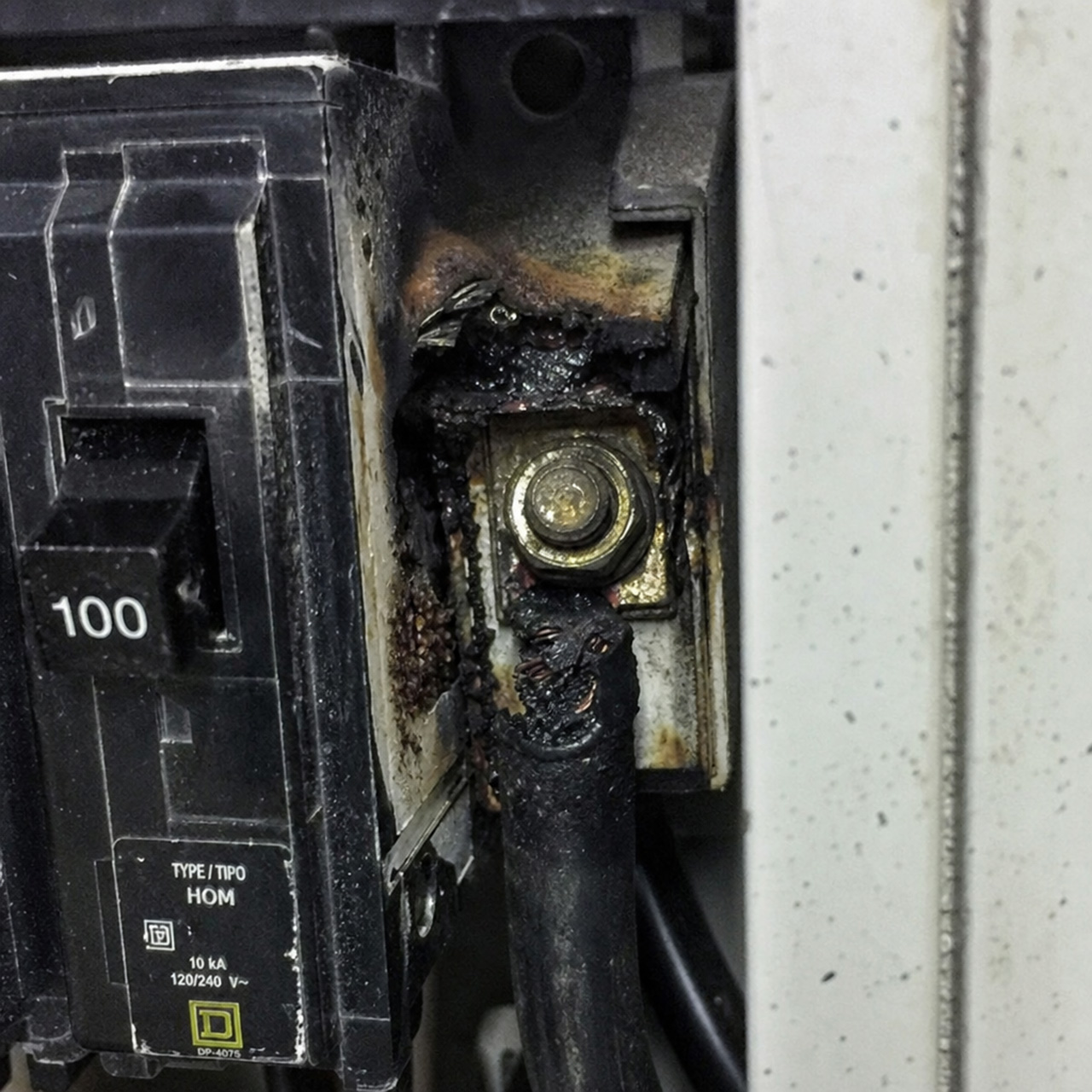

· Burn marks, melted housing, deformation, or cracking

· Terminals or conductors damaged by overheating

· Handle movement that is loose, sticky, or inconsistent

· Breaker will not reset, latch, or switch cleanly

· Evidence of internal arcing, smoke, or burned smell

· Corrosion on conductive parts or mounting surfaces

· Failed trip, insulation, or resistance test

· Missing rating information or unclear circuit identification

· Breaker type no longer suitable after equipment modification

· Repeated trips with no corrected root cause

Do not treat replacement as a failure of maintenance. In a factory, replacement is often the safest and most economical decision because it reduces the risk of equipment damage, unplanned shutdowns, and unsafe troubleshooting during production pressure.

Replacement standards for factory equipment

The phrase Circuit Breaker Aging Judgment & Replacement Standards for Factory Equipment points to a practical need: every facility should define consistent rules before a problem occurs. Standards should be written, easy to follow, and aligned with applicable codes, manufacturer instructions, and internal safety procedures.

A workable replacement standard should define:

· Inspection intervals: Set routine checks based on environment, load criticality, and production conditions.

· Condition categories: Classify breakers as normal, monitor, repair, replace soon, or remove from service.

· Test requirements: Specify which breaker types need functional or electrical testing and how results are recorded.

· Immediate removal criteria: List defects that require de-energizing the circuit and replacing the breaker before restart.

· Approved replacements: Require correct voltage, current, interrupting capacity, pole count, trip characteristics, enclosure compatibility, and certifications required by the facility.

· Documentation: Record installation date if known, inspection results, test values, trip events, maintenance actions, and replacement date.

This standard helps technicians make consistent decisions and gives managers a clearer basis for budgeting spare parts, scheduling downtime, and prioritizing high-risk panels.

A practical maintenance program reduces surprise failures

Circuit breaker maintenance works best when it is part of a larger electrical reliability plan. Panels should be kept clean, dry, correctly labeled, and protected from unnecessary vibration or heat. Loads should be reviewed when production equipment changes, because adding motors or heaters to an existing panel can create stress that was not present when the breaker was installed.

Good maintenance habits include tightening only by approved methods, never oversizing breakers to stop nuisance trips, investigating every repeated trip, and replacing damaged covers or missing barriers promptly. Teams should also keep suitable spare breakers for critical equipment, especially where older models may be difficult to source quickly.

Final guidance for safer decisions

Circuit breakers are safety devices, not just switches. If a breaker shows signs of aging, the safest question is not “Can it run a little longer?” but “Can it still protect people and equipment reliably?” A clear program of electrical safety checks, documented circuit breaker maintenance, and condition-based replacement standards gives factories a stronger answer.

When uncertainty remains, involve qualified electrical personnel and follow manufacturer instructions and applicable regulations. Replacing a questionable breaker is usually easier than recovering from damaged equipment, electrical fire, or preventable downtime.
