Hydraulic Drives vs Pneumatic Drives in Industrial Equipment

Choosing between hydraulic and pneumatic drives is a practical motion control decision, not just a component preference. Hydraulic systems use pressurized liquid to produce force, while pneumatic systems use compressed air to create movement. The right choice depends on load, speed, precision, environment, maintenance expectations, and energy efficiency goals.

What is the main difference between hydraulic and pneumatic drives?

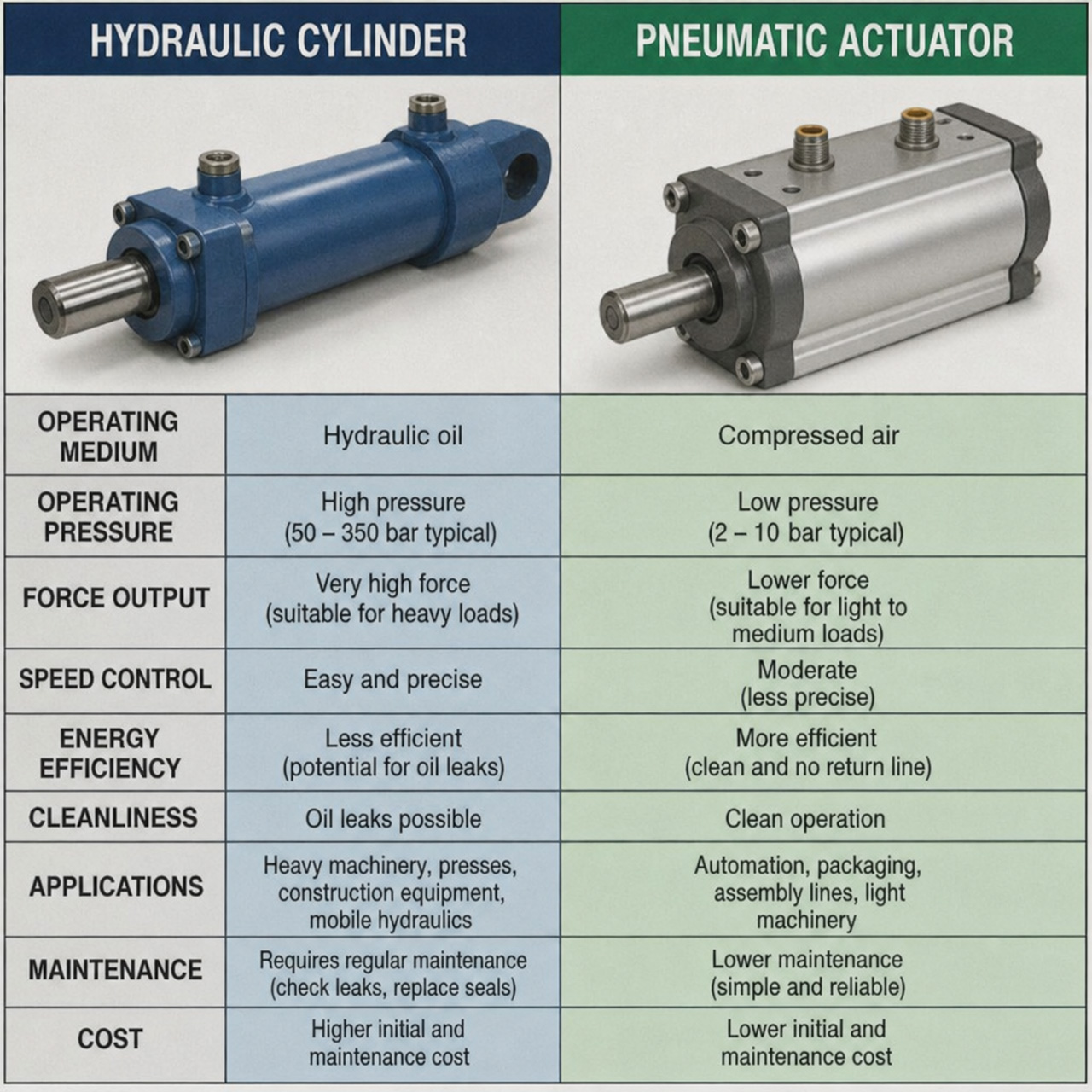

The main difference is the working medium: hydraulic drives move force through incompressible fluid, while pneumatic drives use compressible air. That single distinction affects nearly everything else, including force output, controllability, cleanliness, operating cost, and system design. In industrial equipment, hydraulic vs pneumatic selection usually comes down to whether the machine needs high force and smooth control or fast, clean, repetitive movement.

Hydraulic drives are common where heavy loads must be lifted, pressed, clamped, steered, or held in position. Because hydraulic fluid does not compress much under pressure, the system can transmit large forces through relatively compact actuators. This makes hydraulic motion well suited for presses, forming machines, mobile equipment, injection molding machines, metalworking equipment, and lifting mechanisms.

Pneumatic drives are common where fast cycling, lighter loads, and simpler automation matter more than very high force. Air cylinders, grippers, slides, and rotary actuators are widely used in packaging, assembly, sorting, conveying, and material handling. Pneumatic systems are often valued for their straightforward design and suitability in environments where leaking oil would be unacceptable.

Core components in each drive system

Both hydraulic and pneumatic systems convert stored pressure into mechanical motion, but their supporting components differ. A hydraulic system typically includes a reservoir, pump, motor, valves, filters, hoses or tubing, actuators, and hydraulic fluid. The pump creates flow, valves direct or regulate that flow, and actuators convert pressure into linear or rotary movement.

A pneumatic system typically includes an air compressor, receiver tank, filters, regulators, lubricators when needed, directional valves, tubing, and actuators. Instead of returning fluid to a reservoir, exhaust air is usually released back into the surrounding environment. This makes the circuit simpler in many applications, although air preparation is still important for reliable operation.

Common actuator types include:

· Hydraulic cylinders, used for high-force linear pushing, pulling, lifting, and clamping.

· Hydraulic motors, used when rotary motion with high torque is required.

· Pneumatic cylinders, used for rapid linear strokes in automated machinery.

· Pneumatic rotary actuators, used for indexing, turning, positioning, and valve operation.

· Grippers and specialty actuators, used in pick-and-place, packaging, and assembly tasks.

The actuator is only one part of the decision. Valves, controls, sensors, pressure ratings, duty cycle, and available utilities all influence how the system performs in real production conditions.

Performance differences that matter in industrial equipment

Hydraulic drives generally provide higher force density than pneumatic drives. A compact hydraulic cylinder can produce substantial force, and the system can hold heavy loads with controlled movement. This is why hydraulic systems are often selected for equipment that must resist shock, maintain pressure, or perform demanding work over long cycles.

Pneumatic drives typically deliver faster response for lighter-duty motion. They are often easy to start, stop, and repeat in simple automated sequences. However, because air compresses, pneumatic motion can feel less rigid and may be harder to control precisely under changing loads.

Force and load handling

If an application involves heavy pressing, lifting, forming, braking, or load holding, hydraulics usually have the advantage. Hydraulic pressure can be controlled to generate smooth, powerful movement across a wide load range. This is especially useful when equipment must maintain consistent force rather than simply move from one position to another.

Pneumatics are better suited to moderate-force tasks such as pushing parts, opening gates, operating clamps, or moving lightweight tooling. They can still be powerful enough for many factory automation tasks, but cylinder size and air consumption rise as force demands increase. At some point, a hydraulic actuator becomes more practical.

Speed and responsiveness

Pneumatic systems can cycle quickly because air is readily available and components are often lightweight. For repetitive movements like ejecting a part, shifting a stop, or actuating a diverter, pneumatics can be economical and effective. Speed control is possible, but changes in load and air compressibility can affect consistency.

Hydraulic drives can also move quickly, but they are often chosen for controllable power rather than simple high-speed cycling. With the right valves and controls, hydraulic motion can be smooth, gradual, and precise. This makes hydraulics useful where acceleration, deceleration, and force ramping must be managed carefully.

Which system offers better energy efficiency?

Energy efficiency depends on the whole installation, not just the drive type. Pneumatic systems can waste energy through leaks, pressure drops, over-compression, and unnecessary blowing, while hydraulic systems can lose energy through heat, throttling, pump inefficiency, and continuous circulation. The more efficient choice is the one matched correctly to the load, duty cycle, controls, and maintenance discipline.

For light, intermittent motion, pneumatics may be efficient enough and easy to justify. For continuous high-force work, hydraulics may use energy more effectively because they can produce large forces without oversized actuators or excessive compressed-air demand. In both cases, efficiency improves when pressure is set only as high as needed, leaks are repaired quickly, and controls are designed around actual machine requirements.

A practical energy checklist includes:

· Match actuator size to the real load instead of oversizing by habit.

· Use the lowest pressure that still delivers reliable motion.

· Fix compressed-air leaks and hydraulic fluid leaks promptly.

· Avoid running pumps or compressors unnecessarily during idle time.

· Use sensors and controls to reduce wasted strokes, dwell time, and pressure loss.

· Maintain filters, seals, hoses, and regulators before performance declines.

Cleanliness, safety, and maintenance considerations

Pneumatic systems are often preferred where cleanliness is important because air leaks do not create oil spills. Food packaging, electronics assembly, light manufacturing, and clean handling areas often benefit from this advantage. That does not mean pneumatic systems are maintenance-free, but the consequences of a small air leak are usually different from those of a hydraulic fluid leak.

Hydraulic systems require careful attention to fluid condition, filtration, seals, and hose integrity. Contaminated fluid can damage valves and actuators, while leaks can create housekeeping and safety issues. The payoff is that a well-maintained hydraulic system can deliver durable, high-force performance in demanding environments.

Safety also differs. Hydraulic systems can store significant pressure and may move heavy loads with great force. Pneumatic systems can create sudden movement, high noise levels, and hazardous air discharge if not controlled properly. In either case, lockout procedures, pressure relief, guarding, and proper component ratings are essential.

Application fit is the deciding factor

There is no universal winner in Hydraulic Drives vs Pneumatic Drives in Industrial Equipment. The best choice is the technology that fits the motion profile, production environment, control needs, and lifetime operating cost of the machine. A simple pick-and-place device and a heavy forming press should not be evaluated by the same criteria.

Choose hydraulic drives when the application needs:

· High force in a compact actuator.

· Smooth motion under heavy or changing loads.

· Strong clamping, pressing, lifting, or holding capability.

· High torque rotary motion.

· Reliable performance in rugged machinery.

Choose pneumatic drives when the application needs:

· Fast, repetitive movement with lighter loads.

· Clean operation where oil leakage is a concern.

· Simple on-off or end-to-end motion.

· Lower component complexity for basic automation.

· Easy integration into existing compressed-air infrastructure.

How should engineers choose between hydraulic vs pneumatic systems?

Engineers should start with the required motion, then work backward to the drive technology. Define the load, stroke, speed, duty cycle, precision, environment, safety requirements, and available utilities before choosing components. This prevents the common mistake of selecting a familiar technology instead of the best-fit system.

A useful selection process is:

1. Define the motion task. Identify whether the machine needs linear motion, rotary motion, force control, speed control, or position holding.

2. Calculate force and torque needs. Include peak loads, friction, tooling weight, shock, and safety factors.

3. Review the operating environment. Consider temperature, dust, washdown, contamination risk, noise, and cleanliness expectations.

4. Evaluate control requirements. Decide whether simple open-close actuation is enough or whether proportional, servo, or feedback control is needed.

5. Estimate lifetime cost. Include energy use, maintenance time, leak management, replacement parts, and downtime risk.

6. Plan for serviceability. Make sure technicians can access filters, valves, seals, fittings, and diagnostic points.

Final guidance for better motion control decisions

Hydraulic drives excel when industrial equipment needs strength, stability, and controlled power. Pneumatic drives excel when equipment needs clean, quick, relatively simple movement. Both can be reliable and effective when designed around the real application rather than selected by assumption.

For the best motion control outcome, compare hydraulic systems and pneumatic systems at the machine level. Look beyond the actuator and consider pressure generation, controls, maintenance, energy efficiency, safety, and the environment where the equipment will operate. When those factors are weighed together, the right drive choice becomes much clearer.
