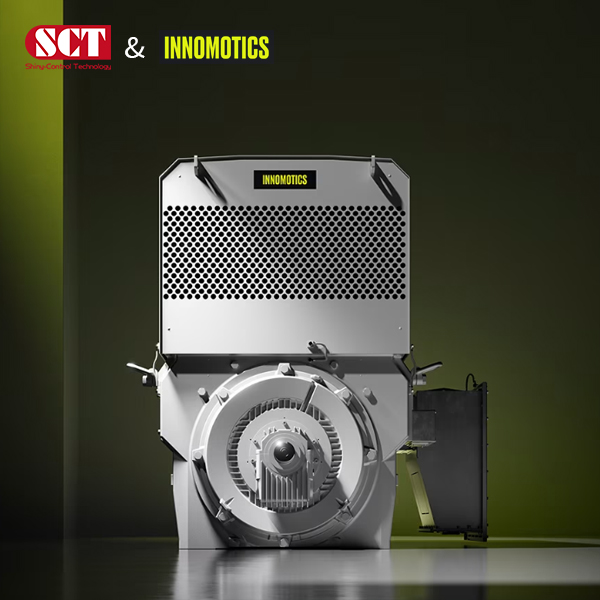

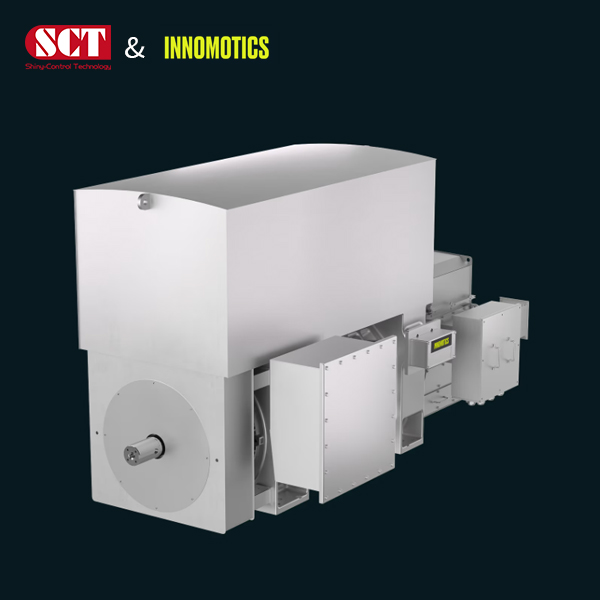

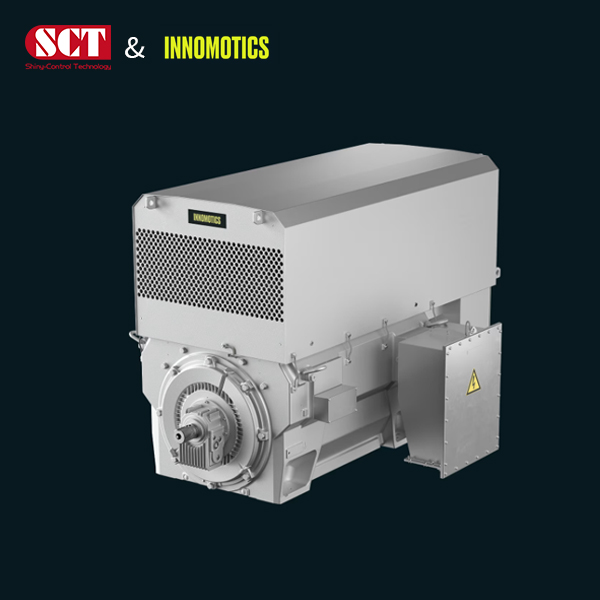

Modular Motors
Every application is different. That’s why your motor should adapt to your requirements. Our Modular Motors deliver customizable performance up to 29 MW – based on a common platform. So you always have the right motor to master your individual challenge.
Related products
The advantage of the product is your benefit：
1. Customizable to your requirements
Our motors adapt to your needs and deliver high power density in minimal space. Choose from various air-to-air or air-to-water configurations. And benefit from easy system integration.
2. Based on proven design standards
Standardized components. Proven worldwide. Our motors deliver reliable performance – even in demanding environments. Easy maintenance helps you keep downtime low and stay productive.
3. Suitable for many applications and industries
Reliable performance for demanding applications. Our motors deliver up to 29 MW for various industries such as Oil and Gas or marine. Built robust, they keep running longer – even under harsh operating conditions.
Modular Motor portfolio in detail：
HV M |
HV M Slipring |
HV M A-compact-PLUS |
|
| Type of motor | Asynchronous | Asynchronous | Asynchronous |
| Power range | up to 29 MW |
0.2 – 4.5 MW (higher on request) |
0.25 – 7.35 MW |
| Voltage range |
0.38 – 13.8 kV
|
up to 11 kV | up to 11 kV |
| Shaft height |
355 up to 560 mm: cast iron enclosure (welded steel on request) 630 up to 900 mm: welded steel enclosure |
355 – 630 mm (higher on request) |
355 – 630 mm |
| Number of poles |
2 – 12 poles (other pole numbers on request) |
4 / 6 / 8 | 2 – 16 |
| Operating mode | VSD / DOL | VSD /DOL | VSD / DOL |
