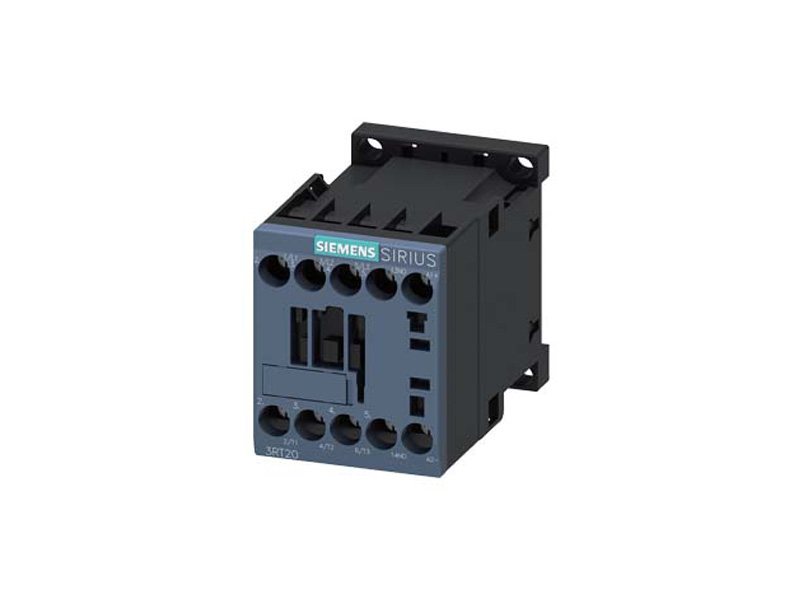

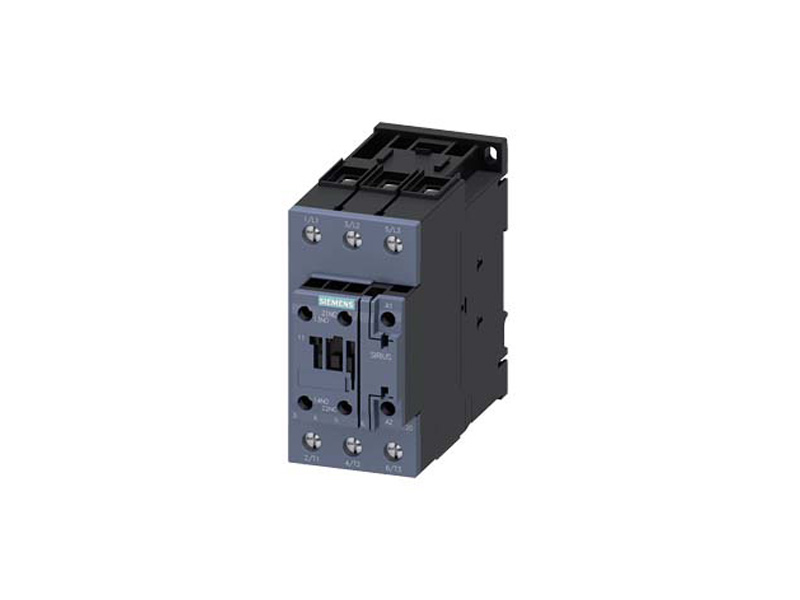

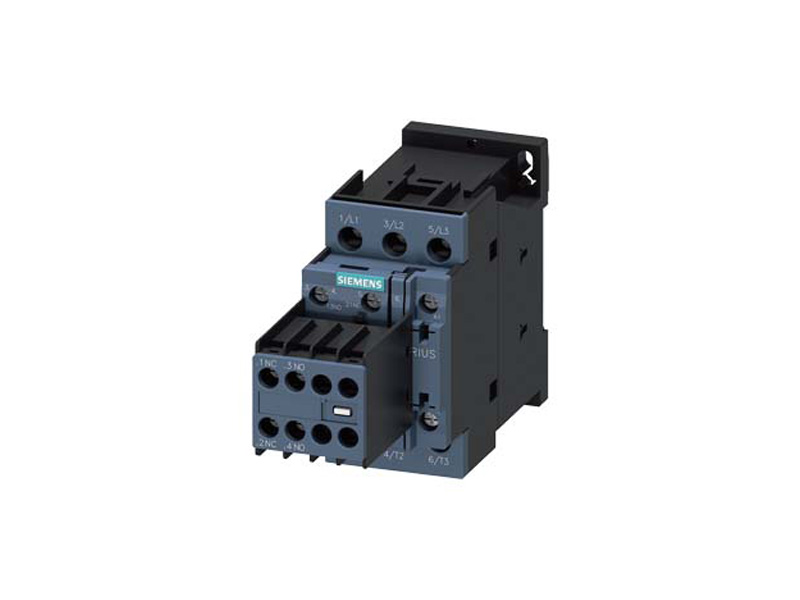

SIRIUS 3RT2 Series
Siemens Contactor 3RT2 Full Series.
Related products
| Parameter Category | Full Specification Range |
|---|---|
| Pole Number | 3-pole |
| Main Contact Configuration | 3NO |
| Built-in Auxiliary Contacts | S00: 1pc built-in (1NO or 1NC) S0: 2pcs built-in (1NO+1NC) S2/S3: No built-in aux contacts, expandable with add-on auxiliary blocks |
| Rated Operational Current (AC-3, 400V) |
7A ~ 65A AC-3
|
| Matched 3-Phase Motor Power (400V AC-3) | S00: up to 7.5kW S0: up to 18.5kW S2: up to 37kW S3: up to 55kW Total range: 3kW ~ 55kW |
| Main Circuit Rated Voltage | Max. 690 V AC |
| Control Coil Type | • AC Coil • DC Coil |
| Available Control Coil Voltages | AC Coil: 24VAC, 48VAC, 110VAC, 220/230VAC, 380/400VAC DC Coil: 24VDC, 48VDC, 110VDC, 220VDC |
| Contactor Frame Sizes | S00, S0, S2, S3 |
| Terminal Connection Type | Screw clamp terminals, Spring-cage quick connect terminals |
