SIMOTICS S-1FT2 Series

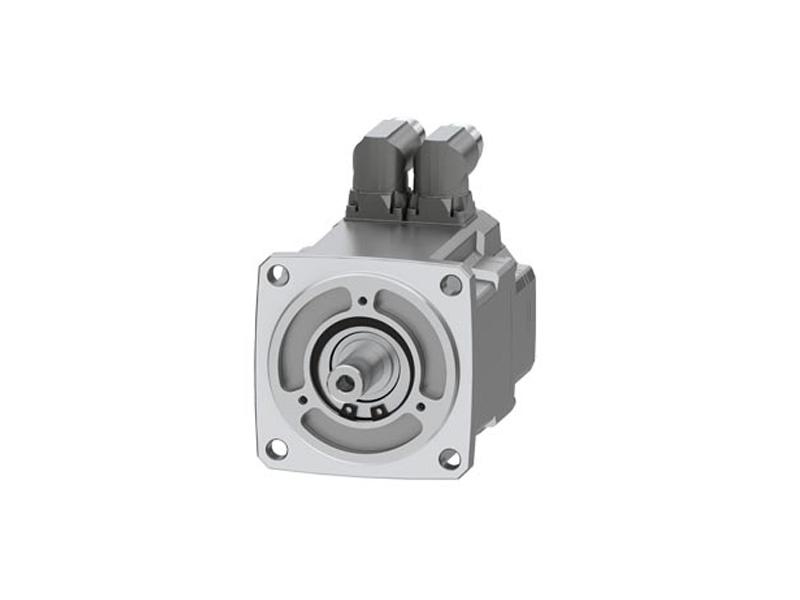

Siemens Servo Motor SIMOTICS S-1FT2 Full Series.
Related products
| Parameter Item | CT Compact | HD High Dynamic |
|---|---|---|
| Inertia Type | Standard rotor inertia, ultra-low cogging & torque ripple, universal high-precision positioning | Ultra-low rotor inertia, extreme dynamic performance, for high-speed frequent start-stop |
| Rated Power Range | 0.26 – 15.7 kW | 0.26 – 3.8 kW |
| Rated Torque Range | 0.64 N·m ~ 58 N·m | 0.4 N·m ~ 13.8 N·m |
| Supply Voltage |
1AC/3AC 200–240V (230V class); 3AC 380–480V (400V class) dual voltage |
1AC/3AC 200–240V; 3AC 380–480V dual voltage |
| Encoder Spec (DRIVE-CLiQ / OCC one-cable) | 1. AS22DQC: 22bit single-turn absolute 2. AM22DQC: 22bit single-turn +12bit multi-turn absolute 3. AS26DQC: 26bit high-res single-turn absolute; no incremental encoder |
1. AS22DQC: 22bit single-turn absolute 2. AM22DQC: 22bit single-turn +12bit multi-turn absolute 3. AS26DQC: 26bit high-res single-turn absolute; no incremental encoder |
| Rated Speed | 1500 / 2000 / 3000 / 4500 / 6000 rpm | 3000 / 4500 / 6000 rpm, max speed 8000 rpm |
| Motor Shaft Type | Plain shaft (no keyway);
Shaft with feather key
|
Plain shaft / feather key shaft optional |
| Holding Brake | No brake / 24V DC spring-loaded power-off holding brake, backlash ＜1° | no brake / 24V DC spring brake |
