SIMOTICS S-1FK2 Series

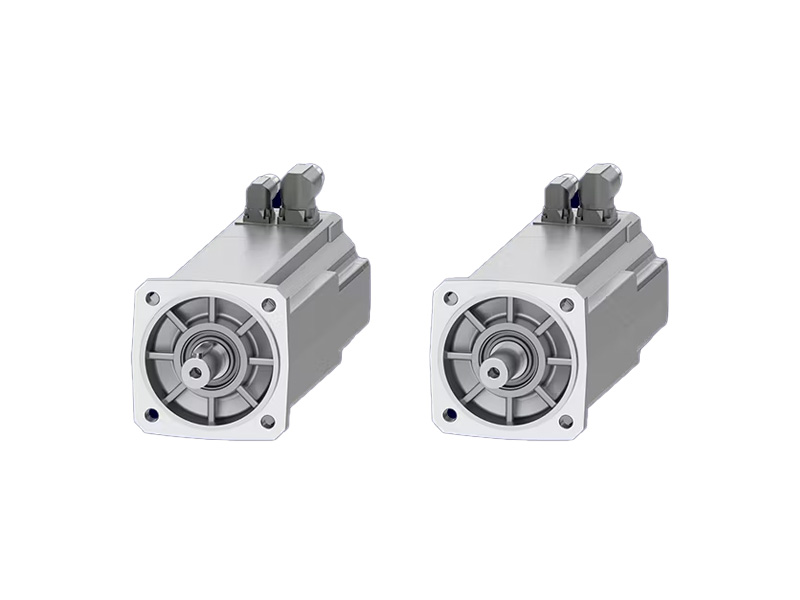

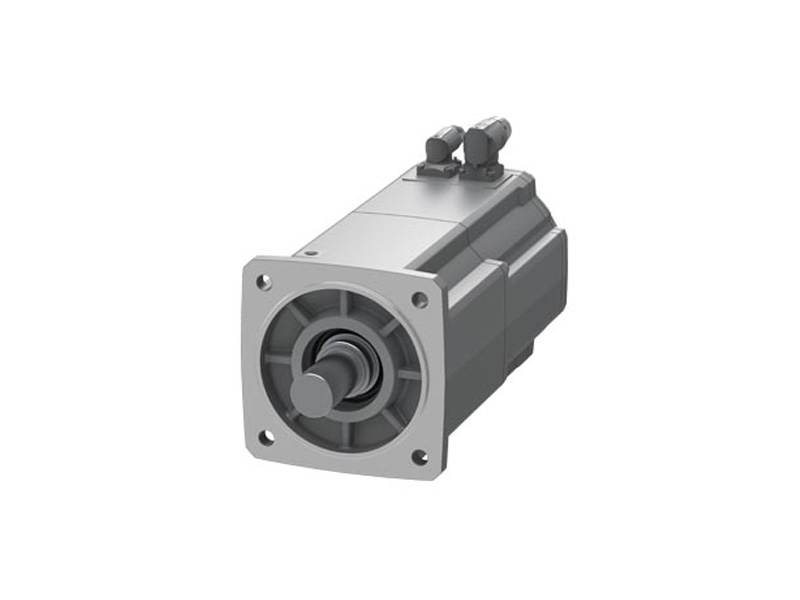

Siemens Servo Motor SIMOTICS S-1FK2 Full Series.
Related products
| Parameter Item | CT Compact | HD High Dynamic | HI High Inertia |
|---|---|---|---|
| Inertia Type | Standard rotor inertia, universal high power density design | Ultra-low rotor inertia, ultra-fast acceleration & high dynamic response | High rotor inertia, stable low-speed operation, strong anti-load disturbance |
| Rated Power Range | 0.26–7.1 kW | 0.05–2.1 kW | 1.0–6.4 kW |
| Rated Torque Range | 0.64 N·m ~ 34.5 N·m | 0.16 N·m ~ 8.0 N·m | 3.2 N·m ~ 30 N·m |
| Supply Voltage | 1AC/3AC 200–240V (230V class); 3AC 380–480V (400V class) dual voltage |
1AC/3AC 200–240V; 3AC 380–480V |
3AC 380–480V (400V industrial three-phase) |
| Encoder Spec (DRIVE-CLiQ/OCC one-cable) | AM22DQC 22bit single-turn +12bit multi-turn absolute; 22bit single-turn absolute, no incremental encoder |
AM22DQC 22bit single-turn +12bit multi-turn absolute; 22bit single-turn absolute, no incremental encoder |
AM22DQC 22bit single-turn +12bit multi-turn absolute; 22bit single-turn absolute, no incremental encoder |
| Rated Speed | 1500 / 3000 / 6000 rpm | 3000 / 6000 rpm, max 7200 rpm | 2000 / 3000 rpm |
| Motor Shaft Type | Smooth shaft (no keyway);
Shaft with half feather key |
Smooth shaft / feather key shaft | Smooth shaft / feather key shaft |
| Holding Brake | No brake / 24V DC power-off electromagnetic holding brake | no brake / 24V DC brake | no brake / 24V DC brake |
