SIMOTICS S-1FL2 Series

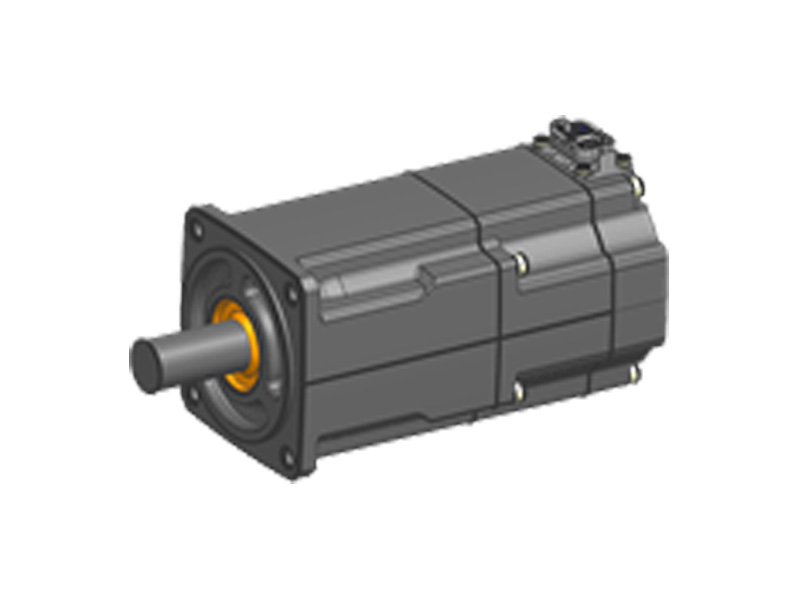

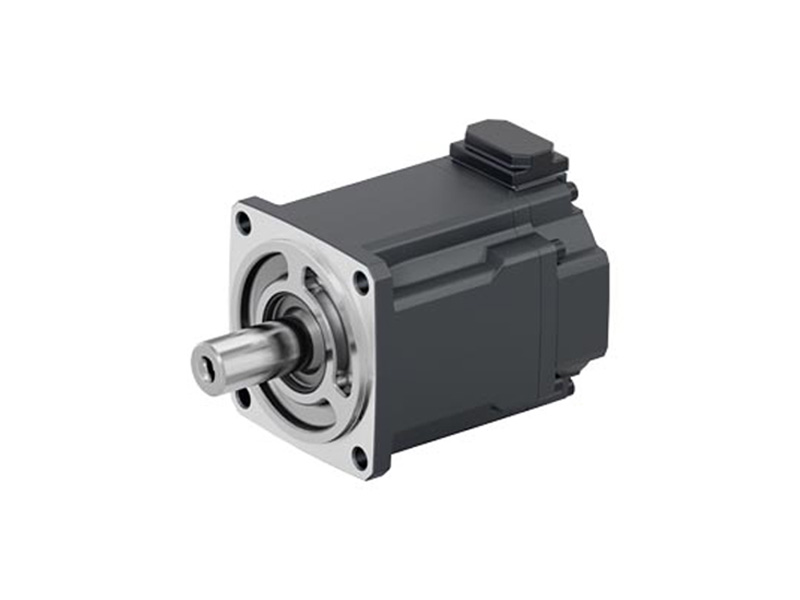

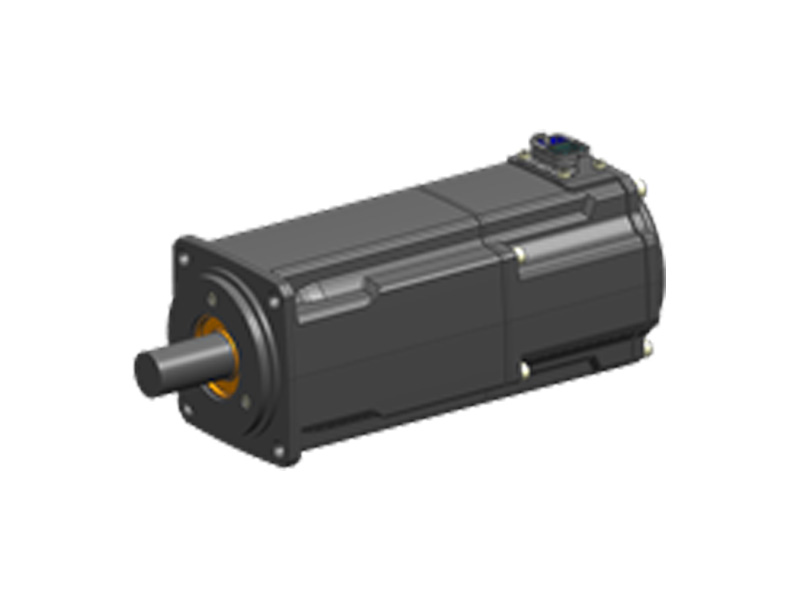

Siemens Servo Motor SIMOTICS S-1FL2 Full Series.
Related products
| Parameter Item | Low Inertia (LI) | Medium Inertia (MI) | High Inertia (HI) |
|---|---|---|---|
| Inertia Type | Low rotor inertia, ultra-fast acceleration, high dynamic operation | Medium rotor inertia, balanced general performance | High rotor inertia, stable low speed, strong anti-load fluctuation |
| Rated Power Range | 0.1kW ~ 2.0kW | 0.4kW ~ 3.0kW | 0.75kW ~ 7.0kW |
| Rated Torque Range | 0.32 N·m ~ 6.37 N·m | 1.27 N·m ~ 9.55 N·m | 2.39 N·m ~ 33.4 N·m |
| Supply Voltage | 1AC/3AC 200~240V (230V class); 3AC 380~480V (400V class) |
1AC/3AC 200~240V; 3AC 380~480V |
3AC 380~480V (400V class) |
| Encoder Specification (Battery-free mechanical absolute) | 1. 17-bit single-turn absolute 2. 21-bit single-turn absolute 3. 21-bit single-turn + 12-bit multi-turn absolute |
1. 17-bit single-turn absolute 2. 21-bit single-turn absolute 3. 21+12bit multi-turn absolute |
1. 17-bit single-turn absolute 2. 21-bit single-turn absolute 3. 21+12bit multi-turn absolute |
| Rated Speed |
Standard 3000 rpm; Max 6500 rpm |
Standard 3000 rpm; Max 5000 rpm |
Dual options: 2000 / 3000 rpm; Max 4000 rpm |
| Motor Shaft Type | Smooth shaft (no keyway)
Shaft with feather key
|
Smooth shaft (no keyway)
Shaft with feather key
|
Smooth shaft (no keyway)
Shaft with feather key
|
| Holding Brake | No brake / 24V DC electromagnetic holding brake | No brake / 24V DC electromagnetic holding brake | No brake / 24V DC electromagnetic holding brake |
