SIMOTICS S-1FS2 Series

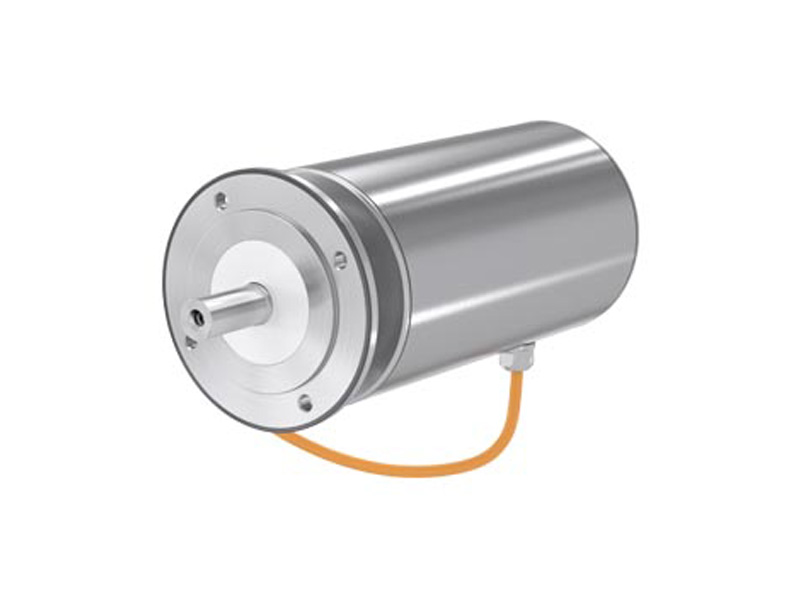

Siemens Servo Motor SIMOTICS S-1FS2 Full Series.
Related products
| Parameter Item | SIMOTICS S-1FS2 Full Series Specification Range |
|---|---|
| Inertia Type | Low inherent inertia, high dynamic performance; only single low inertia design, no high inertia variant |
| Rated Torque Range | 3.1 N·m ~ 14 N·m |
| Rated Power Range | 0.45 kW ~ 2.0 kW |
| Supply Voltage | 1AC 200~240V / 3AC 200~240V (230V class); 3AC 380~480V (400V class) dual voltage options |
| Encoder Specification | Standard AM22DQC 22-bit multi-turn absolute encoder; incremental & single-turn encoders not available, DRIVE-CLiQ integrated in OCC one cable |
| Rated Speed | Standard rated speed: 3000 rpm; max speed: 6000 rpm |
| Motor Shaft Type |
Smooth shaft (no keyway)
Shaft with feather key
|
| Holding Brake | No brake / 24V DC electromagnetic holding brake (power-off lock, power-on release) |
