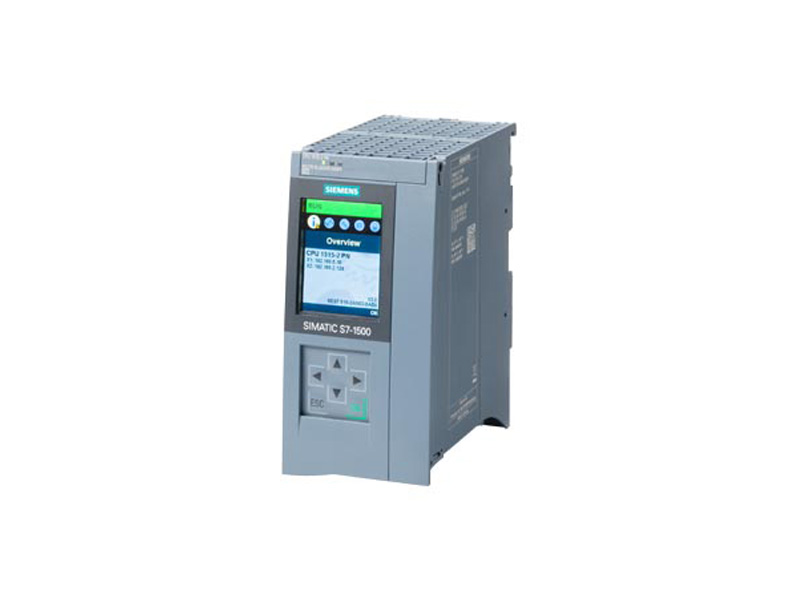

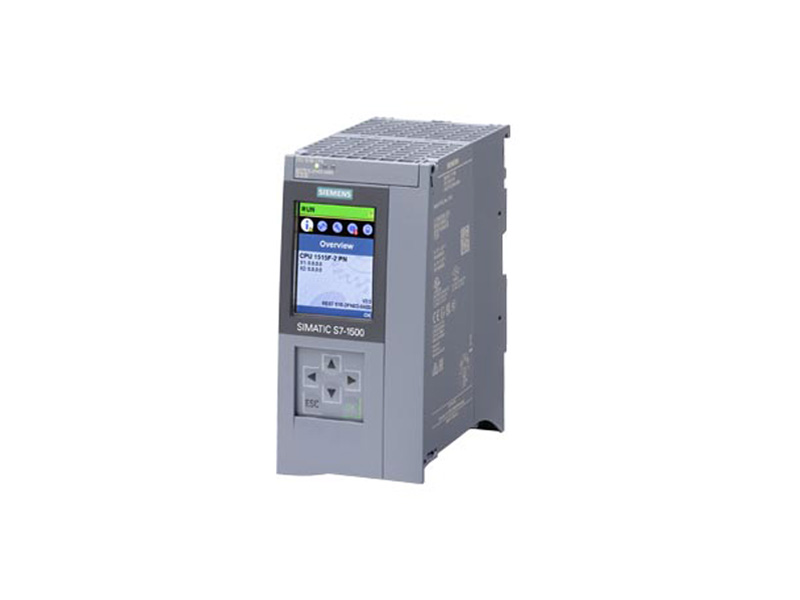

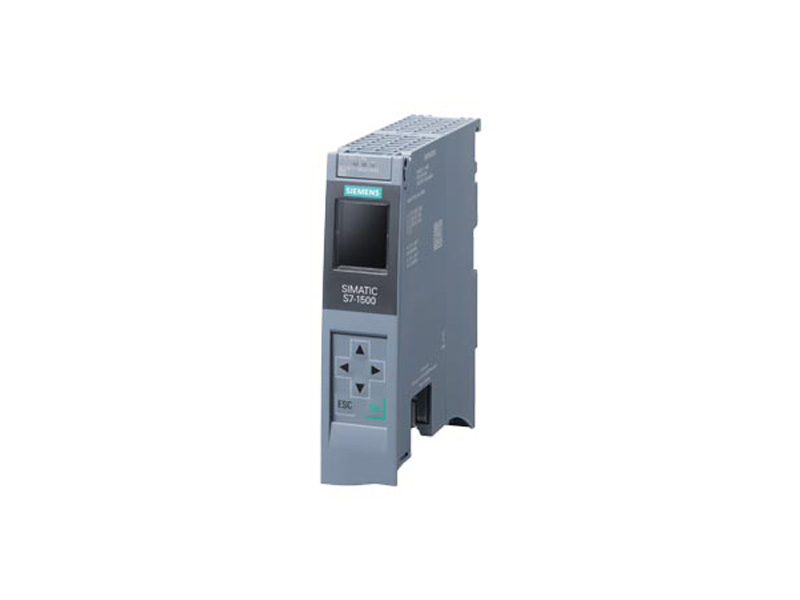

SIMATIC S7-1500 Series
Siemens PLC SIMATIC S7-1500 Full Series.
Related products
| Product Category | Integrated Onboard I/O Range | Maximum Expandable Total I/O Points | Program Work Memory Range | Data Work Memory Range | Power Supply Specification |
|---|---|---|---|---|---|
| S7‑1500 Standard CPU (1511/1513/1515/1516/1517/1518, 6ES75xx) | No integrated onboard I/O, all I/O via expansion modules | Digital I/O Max: 32768 points
|
150 KB ~ 4 MB
|
1 MB ~ 150 MB
|
Rated: DC 24 V
|
| S7‑1500 Compact C‑type CPU (1511C / 1512C, integrated I/O) | CPU 1511C: DI16 / DQ16 + AI5 / AO2
|
Same maximum expansion capacity as standard CPU: DI+DO 32768, AI+AO 2048 | 175 KB ~ 250 KB | 1 MB fixed | Rated: DC 24 V
|
| SIPLUS S7‑1500 Harsh Environment Version (6AG1 / 6AG2 prefix) | Same integrated I/O as corresponding standard / compact CPU model | Identical expansion I/O limit to matching standard CPU | Same program work memory as corresponding standard model | Same data work memory as corresponding standard model | DC 19.2 V ~ 28.8 V wide DC 24 V supply |
