Primary Power Distribution

Huatech Primary Power Distribution Full Series

Related products

Low Voltage Motors
Low Voltage Motors
Industrial Generators
Industrial Generators
High Power Motors
High Power Motors

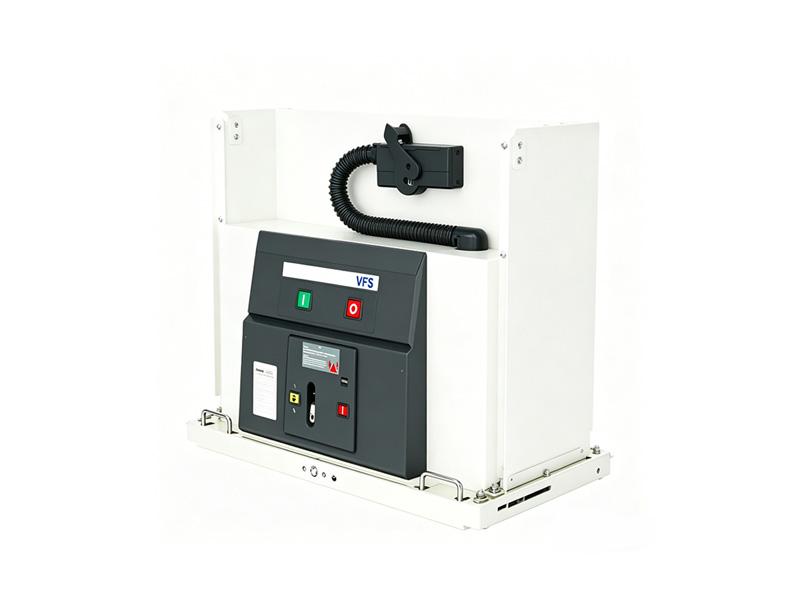

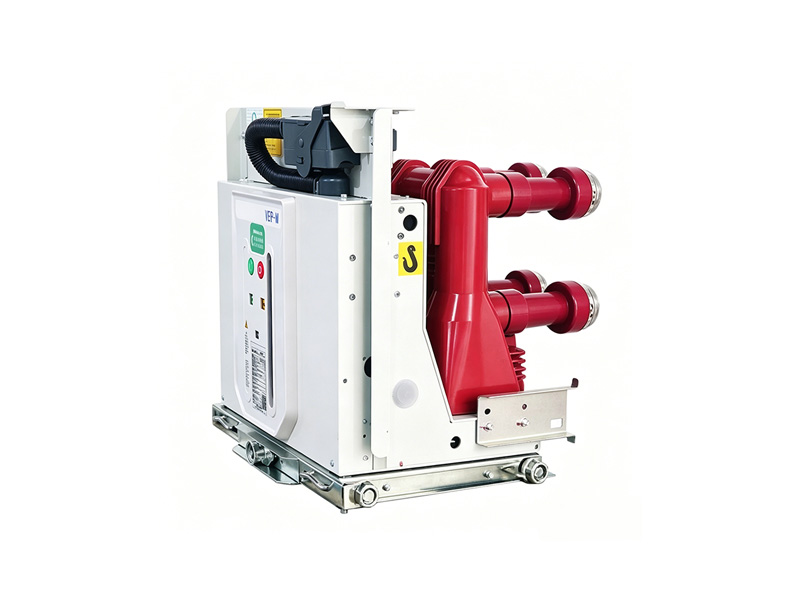

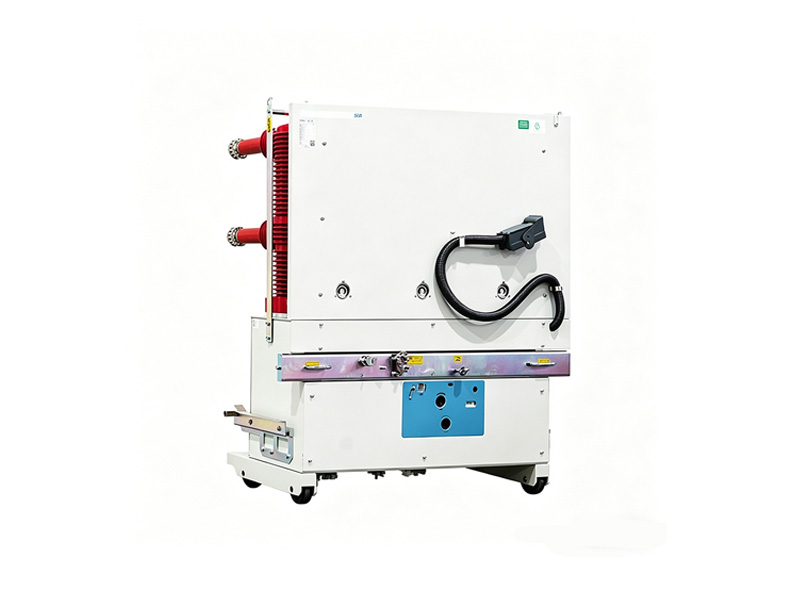

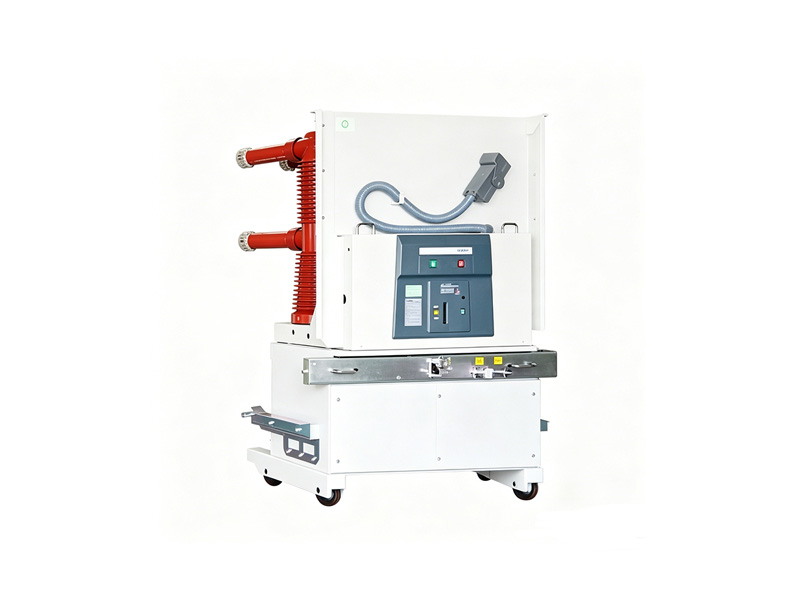

No. Parameter Unit VEP Indoor Solid-Encapsulated Vacuum Circuit Breaker VEP-M Indoor Solid-Encapsulated Vacuum Circuit Breaker FEP Indoor SF₆ Circuit Breaker VFS Indoor Generator Circuit Breaker VEC Vacuum Contactor-Fuse Combination Unit
1 Rated Voltage kV 12 / 17.5 / 24 / 40.5 12 12 / 40.5 12 7.2 / 12
2 Rated Frequency Hz 50 (17.5kV: 50/60) 50 50 50 50
3 Power Frequency Withstand Voltage (Auxiliary Circuit) kV 2 2 2 - -
4 1min Power Frequency Withstand Voltage

(Phase-to-Earth & Phase-to-Phase)		 kV 12kV:42

17.5kV:42

24kV:50/65**

40.5kV:95		 42 12kV:42

40.5kV:95		 42 7.2kV:32

12kV:42
5 1min Power Frequency Withstand Voltage

(Across Breaker Pole)		 kV - - 12kV:48

40.5kV:118		 50 -
6 Lightning Impulse Withstand Voltage (Peak)

(Phase-to-Earth & Phase-to-Phase)		 kV 12kV:75

17.5kV:95

24kV:125

40.5kV:185		 75 12kV:75

40.5kV:185		 75 7.2kV:60

12kV:75
7 Lightning Impulse Withstand Voltage (Peak)

(Across Breaker Pole)		 kV - - 12kV:85

40.5kV:215		 85 -
8 Partial Discharge pC - - ≤5 - -
9 Rated Normal Current A 630~5000* 630~4000* 1250~3150* 1250~5000* Contactor: 400

Combination: 7.2kV/315; 12kV/160
10 Rated Short-Circuit Breaking Current kA 20 / 25 / 31.5 / 40 / 50 20 / 25 / 31.5 / 40 12kV:31.5

40.5kV:31.5/40		 40 / 50 Contactor: 4
11 Rated Short-Time Withstand Current kA 20 / 25 / 31.5 / 40 / 50 20 / 25 / 31.5 / 40 12kV:31.5

40.5kV:31.5/40		 40 / 50 4 (4s)
12 Rated Short-Circuit Making Current (Peak) kA 50 / 63 / 80 / 100(125) / 125(150) 50 / 63 / 80 / 100 12kV:31.5

40.5kV:80/100		 115 / 140 Contactor: 4

Combination: 130 (Peak)
13 Rated Peak Withstand Current kA 50 / 63 / 80 / 100(125) / 125(150) 50 / 63 / 80 / 100 12kV:80

40.5kV:80/100		 - -
14 Rated Out-of-Phase Breaking Current kA - - 12kV:7.9

40.5kV:7.9/10		 - -
15 Rated Earth Fault Breaking Current kA - - 12kV:27.4

40.5kV:27.4/34.4		 - -
16 Rated Back-to-Back Capacitor Bank Breaking Current A - - 1250 - -
17 Rated Cable Charging Breaking Current A - - 12kV:25

40.5kV:50		 - -
18 Rated Short-Circuit Duration s 12/17.5/40.5kV:4

24kV:3/4**		 4 4 4 -
19 DC Component of Rated Short-Circuit Breaking Current % - - - ≥80 -
20 Operation Times (Short-Circuit Breaking) Times - - - 10 -
21 Operation Times (Load Current Breaking) Times - - - 50 -
22 Max. Short-Circuit Breaking Current (Combination Unit) kA - - - - 50
23 Operating Frequency Times - - - - Mechanical Latch: 300,000

Electrical Latch: 1,000,000
24 Operating Voltage V - - - - DC110, DC220, AC110, AC220
