Integrated Drive Controller

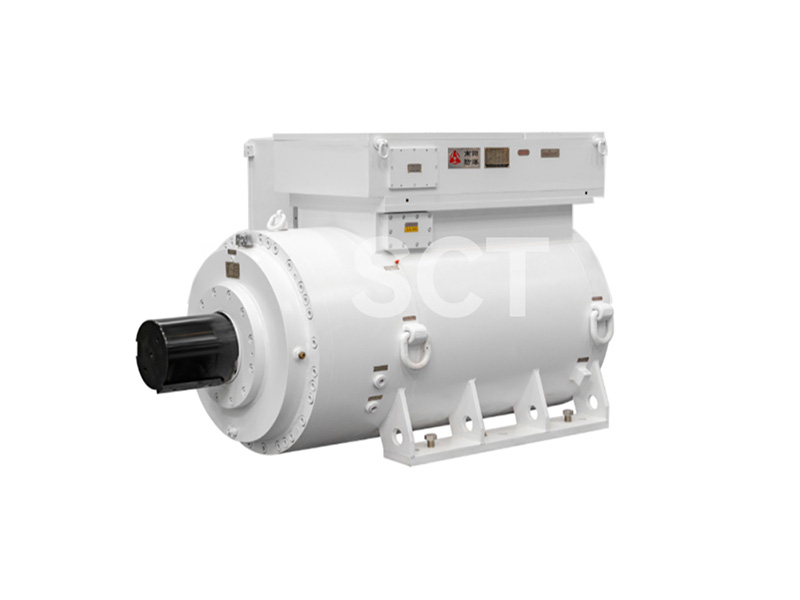

Wolong Integrated Drive Controller Full Range
Related products
| Parameter | Low-speed Permanent Magnet Synchronous Variable Frequency Drive (Semi-direct Drive) Integrated Machine | Permanent Magnet Synchronous Variable Frequency Speed Control Integrated Machine |
|---|---|---|
| Cooling Method | IC37W | IC37W |
| Power Range | 250 - 800kW (340-1000Hp) | 200-1600kW (544-2175Hp) |
| Frame Size | H500-560 | — |
| Speed Range | 60rpm | 1500rpm |
| Frequency | 5~100Hz | 5-60Hz |
| Voltage Range | 1140V | 1140-3300V |
| Protection Level | Up to IP66 | Up to IP66 |
| Explosion Proof Type | Ex db | Ex db |
| Installation Method | IMB3, IMB5, IMB35 | IMB3, IMB5, IMB35 |
| Bearing Selection | Scroll | Scroll |
| Execution Standard | GB, IEC | GB, IEC |
| Qualification Certification | CCC, MA | CCC, MA |
