Low-Voltage Standard Asynchronous Motor
Wolong Low-Voltage Standard Asynchronous Motor Full Range
Related products

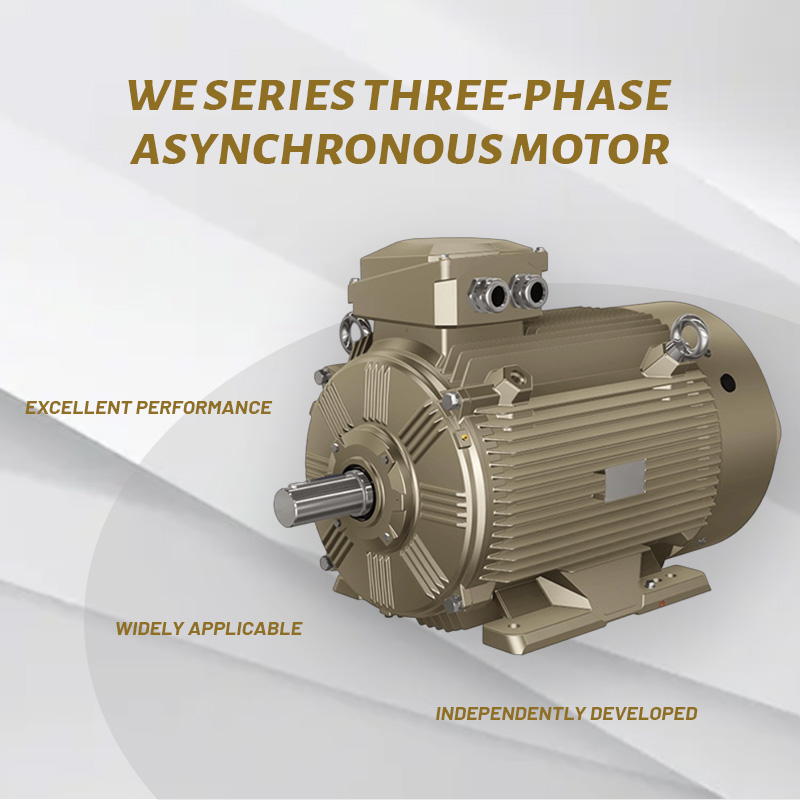

| Parameter Item | WE Series Three-Phase Induction Motor | WPN Series Three-Phase Induction Motor | YE Series Low-Voltage High Power Induction Motor |
|---|---|---|---|
| Frame Size | Aluminum: IEC63~160
|
Aluminum: NEMA56~280 / IEC63~180
|
Iron: IEC400~500 |
| Rated Power Range | 0.12kW ~ 375kW | 0.18kW(0.25HP) ~ 150kW(200HP) | 200kW ~ 1400kW |
| Rated Voltage | 50Hz: 380V | 60Hz: 230V/460V
|
50Hz: 380V / 660V |
| Number of Poles | 2P, 4P, 6P, 8P | 2P, 4P, 6P, 8P | 2P ~ 10P |
| Efficiency Class | IE3, IE4, IE5 | IE3 | IE3, IE4 |
| Duty Cycle | S1 (Continuous) | S1 (Continuous) | S1 (Continuous) |
| Mounting Types | B3, B5, B35, B14, V1 | B3, B5, B35, B14, V1 | B3, V1 |
| Insulation Class | Class F (Class B assessed, ΔT 80K) | Class F (Class B assessed, ΔT 80K) | Class F (Class B assessed, ΔT 80K) |
| Protection Grade | IP55 | IP55 | IP55 |
| Cooling Method | IC411 (TEFC) | IC411 (TEFC) | IC411 (TEFC) |
| Ambient Conditions | 40°C, ≤1000m altitude | 40°C, ≤1000m altitude | 40°C, ≤1000m altitude |
