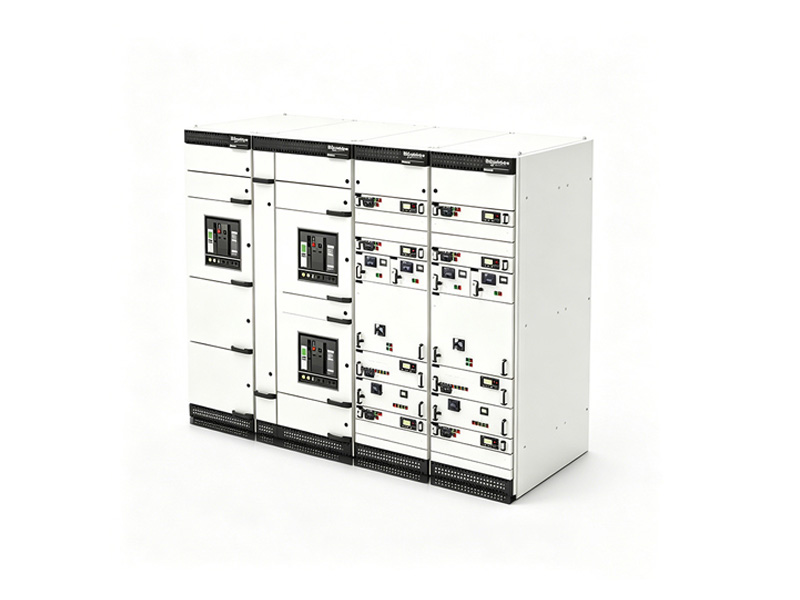

Blokset Full Range Intelligent Low-Voltage Switchgear
Schneider Low Voltage Switchgear Blokset Full Series.
Related products
| Item | Content |
| Rated Insulation Voltage Ui | 1000V |
| Rated Operational Voltage Ue | 400V/690V AC |
| Rated Frequency | 50/60Hz |
| Rated Impulse Withstand Voltage Uimp | 12kV |
| Overvoltage Category | Class IV |
| Pollution Degree | Class 3 |
| Busbar Rated Parameters | |
| Maximum Current of Horizontal Busbar | 7000A |
| Maximum Current of Vertical Busbar | 3200A |
| Short-time Withstand Current of Horizontal Busbar (1s) | 30/50/65/85/100kA |
| Peak Withstand Current of Horizontal Busbar | 63/105/143/187/220kA |
| Short-time Withstand Current of Vertical Busbar (1s) | 30/50/65/85kA |
| Peak Withstand Current of Vertical Busbar | 63/105/143/187kA |
| Internal Arc Protection | 85kA / 0.5s |
| Applicable Earthing System | TT, IT, TNS, TNC |
| Circuit Capacity | |
| Maximum Inlet / Outlet Switch Current | 6300A |
| Maximum Motor Control Capacity | 250kW |
