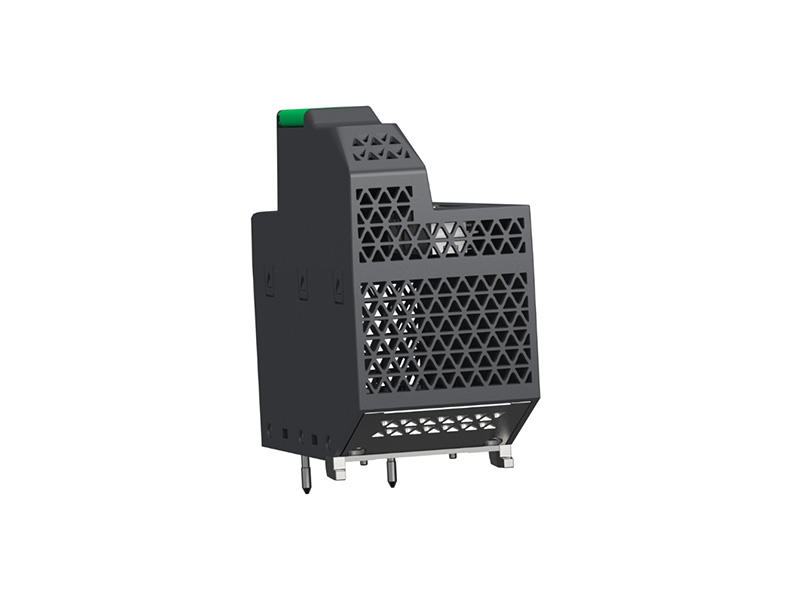

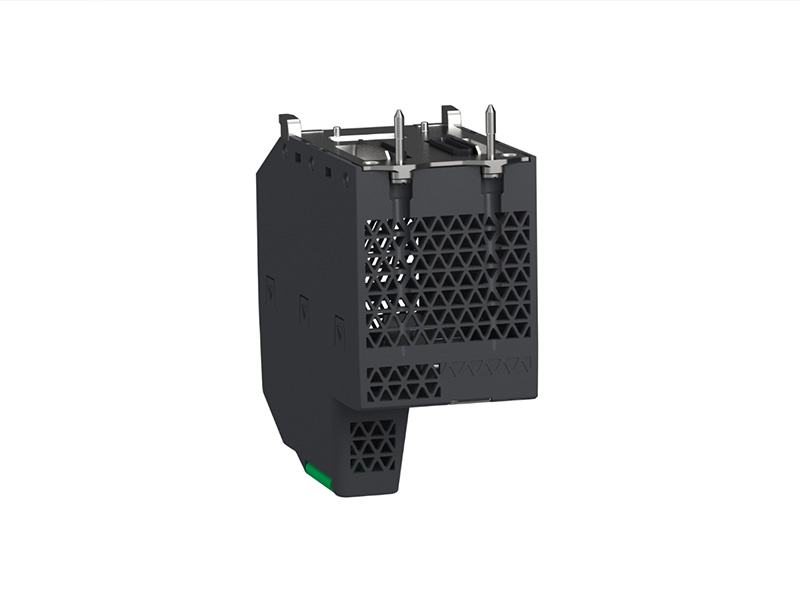

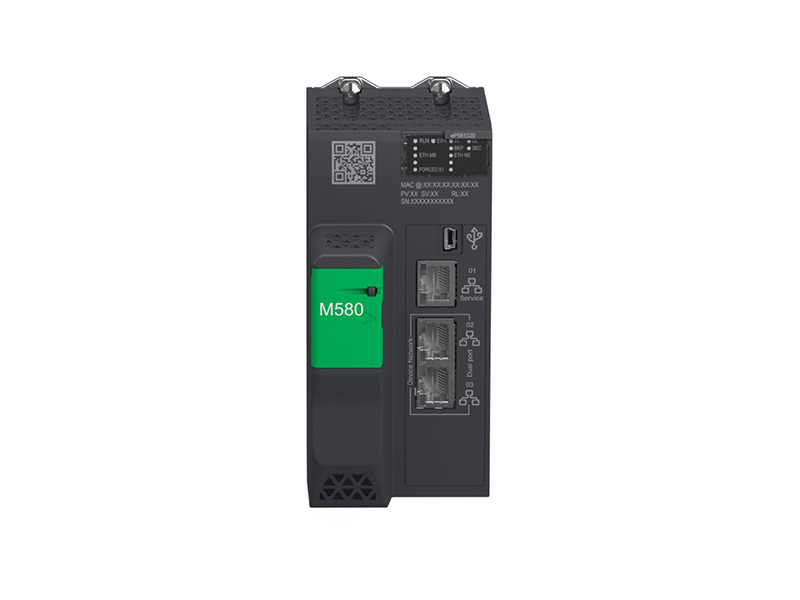

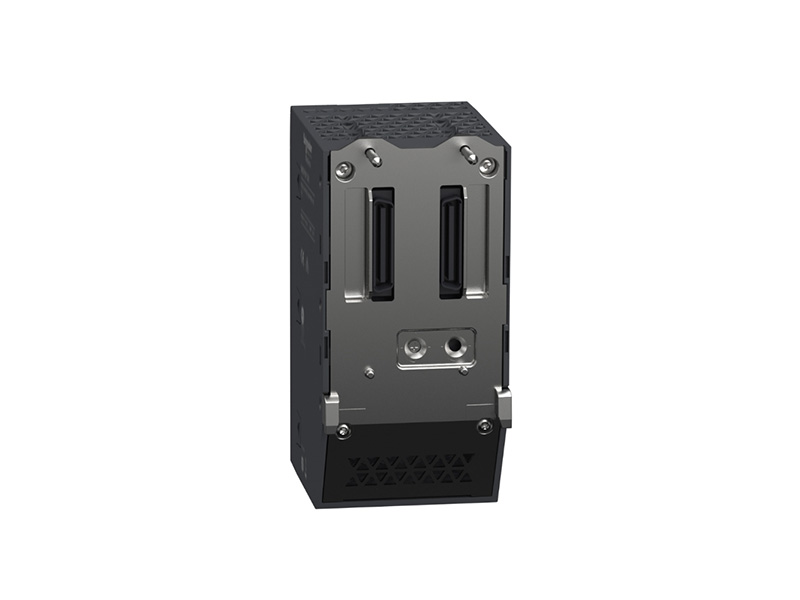

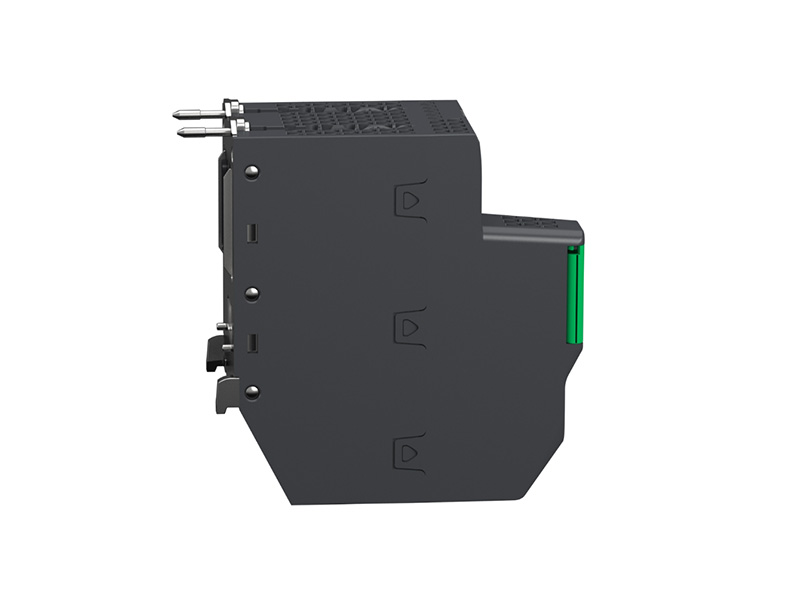

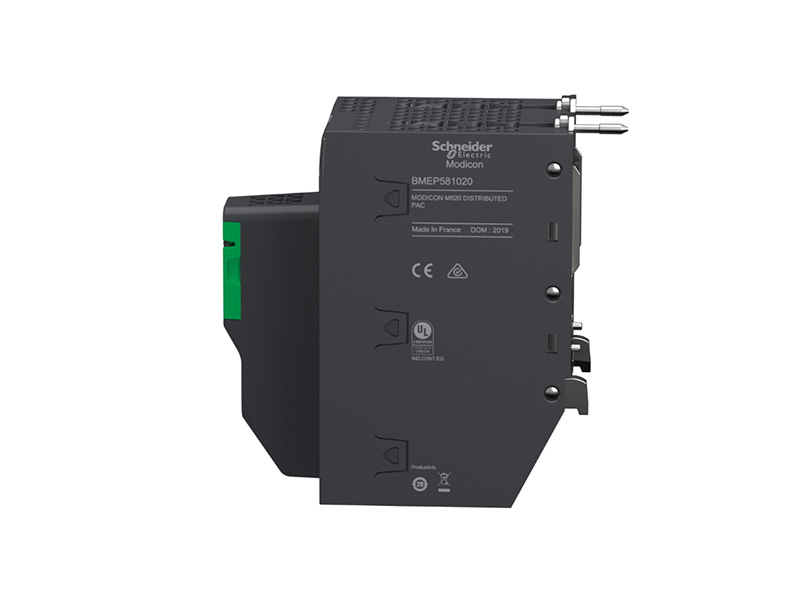

Modicon M580 Series
Schneider PLC Modicon M580 Full Series.
Related products
| Item | Content |
| Power Supply | Rack powered by BMXCPS series power module CPU operating voltage: DC24V wide input 19.2VDC～30VDC Rack optional power: AC110V/AC230V / DC24V |
| Onboard Discrete I/O | No fixed onboard I/O; All I/O configured by X80 series plug-in modules |
| Max Total Discrete I/O | • Basic CPU(BMEP581): Local max1024 DI+DO; Full distributed max16384 DI+DO • Mid-range(BMEP582/583): Local max2048 DI+DO; Full distributed max31744 DI+DO • High-end/Redundancy(BMEP584/586): Max total 31744 points DI+DO |
| Max Analog I/O | • Basic CPU: Local max256 AI/AO, full expansion max4096 channels • High-end CPU: Local max512 AI/AO, full distributed max7936 AI/AO |
| Max Expansion Configuration | 1. Local rack: Max 4 local X80 I/O racks (main+extension) 2. Remote distributed I/O: Up to 31 remote Ethernet drop stations via Modbus TCP/EtherNet/IP 3. Communication slot: Max 8 bus expansion slots for special communication modules |
| Built-in Communication Interfaces | • Standard onboard ports: 1×Service Ethernet RJ45 + 2×Device Ethernet RJ45 (Modbus TCP/EtherNet/IP) • Mini-B USB programming port (all models) • Redundant CPU(BMEP586): Extra dedicated HSBY redundant sync port • No built-in RS485; RS232/RS485 via optional BMXNOM serial module Expandable bus: Profinet, AS-i, HART via X80 communication modules |
| Memory Spec | Basic:4MB Program RAM+384KB Data RAM High-end:64MB Program RAM+4MB Retentive Data RAM Universal external expandable Flash: Max 4GB for recipe/data log |
| Operating Temperature | Standard version:0℃~+60℃; Rugged harsh version:-25℃~+70℃ |
| Protection Grade | IP20, DIN rail backplane rack mounting |
| Programming Software | EcoStruxure Control Expert (Unity Pro latest version, IEC61131-3) |
