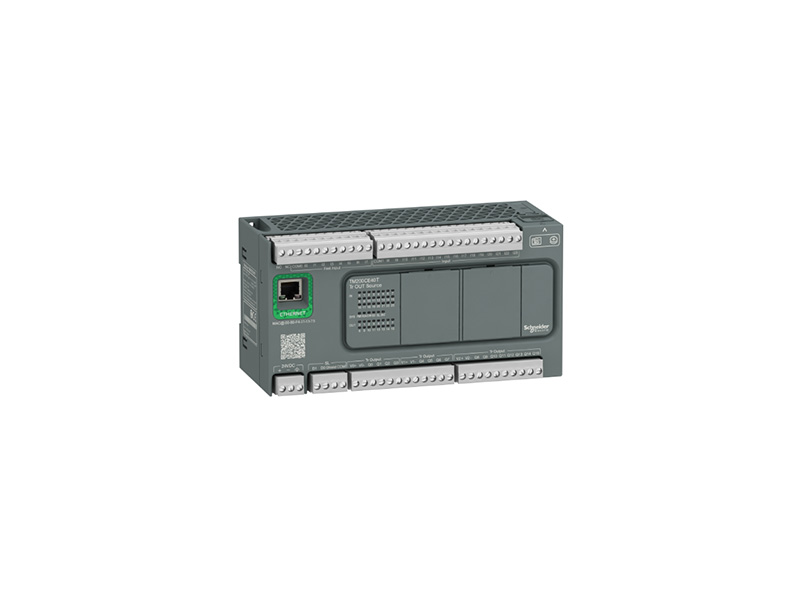

TM200CE Series Schneider Modicon M200 PLC Built-in Modbus TCP Ethernet

Easy Modicon M200 Series

Schneider PLC Easy Modicon M200 Full Series.

Item	Content
Power Supply	• AC type (Relay output CPU): AC85V～264V, 50/60Hz • DC type (Transistor output CPU): DC20.4V～28.8V (rated DC24V wide voltage input) Built-in DC24V sensor power supply terminal
Onboard Discrete I/O	Base CPU specification: 4 onboard variants with 16 / 24 / 40 / 60 points (DI+DO)
Max Total Discrete I/O	• Relay output CPU: Max total 168 points DI+DO • Transistor output CPU: Max total 196 points DI+DO (including onboard I/O + all expansions)
Max Analog I/O	Max up to 32 channels AI/AO via TM3 analog expansion modules
Max Expansion Quantity	1. Front expansion board: Max 2 pieces of front plug-in boards (40/60-point models support 2 boards, 16/24-point models support only 1 board) 2. Right-side I/O module (TM2/TM3): Max 4 pieces of external expansion modules
Built-in Communication Interfaces	• Standard for all models: Mini-B USB2.0 (for program download) + RS485 (Modbus RTU Master/Slave) • CE suffix (Ethernet version): Additional onboard RJ45 Ethernet (Modbus TCP 10/100Mbps) Optional front expansion: Add RS232/RS485 via TMCR2SL1 expansion board
Operating Temperature	Standard: 0℃ ~ +55℃
Protection Grade	IP20, DIN rail mounting
Programming Software	SoMachine Basic programming software
